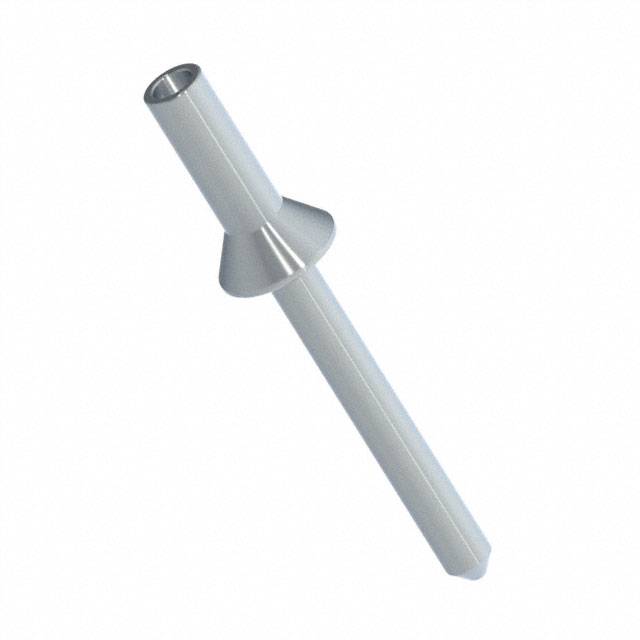

3117-2-00-80-00-00-08-0

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC

Technical Specifications

Parameters and characteristics for this part

Specification	3117-2-00-80-00-00-08-0

Board Thickness	0.062 in
Board Thickness	1.57 mm
Contact Finish	Tin
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Brass Alloy
Insulation	Non-Insulated
Length - Above Flange	4.78 mm
Length - Above Flange	0.188 "
Length - Below Flange [x]	0.078 in
Length - Below Flange [x]	1.98 mm
Length - Overall [x]	0.291 in
Length - Overall [x]	7.39 mm
Mounting Hole Diameter [diameter]	0.035 in
Mounting Hole Diameter [diameter]	0.89 mm
Mounting Type	Through Hole
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Swage

Part	Length - Above Flange	Length - Above Flange	Length - Overall [x]	Length - Overall [x]	Contact Finish	Insulation	Termination	Terminal Type	Length - Below Flange [x]	Length - Below Flange [x]	Contact Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Board Thickness	Board Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Terminal Style
Mill-Max Manufacturing Corp. 3117-2-00-80-00-00-08-0	4.78 mm	0.188 "	0.291 in	7.39 mm	Tin	Non-Insulated	Swage	PC Pin	0.078 in	1.98 mm	Brass Alloy	Through Hole	200 Áin	5.08 Ám	0.062 in	1.57 mm	0.035 in	0.89 mm	Single End
Mill-Max Manufacturing Corp. 3117-2-00-34-00-00-08-0	4.78 mm	0.188 "	0.291 in	7.39 mm	Gold	Non-Insulated	Swage	PC Pin	0.078 in	1.98 mm	Brass Alloy	Through Hole	50 µin	1.27 µm	0.062 in	1.57 mm	0.035 in	0.89 mm	Single End

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.40

General part information

PC Pin Terminal Connector Through Hole Tin 0.024" (0.61mm) Dia
