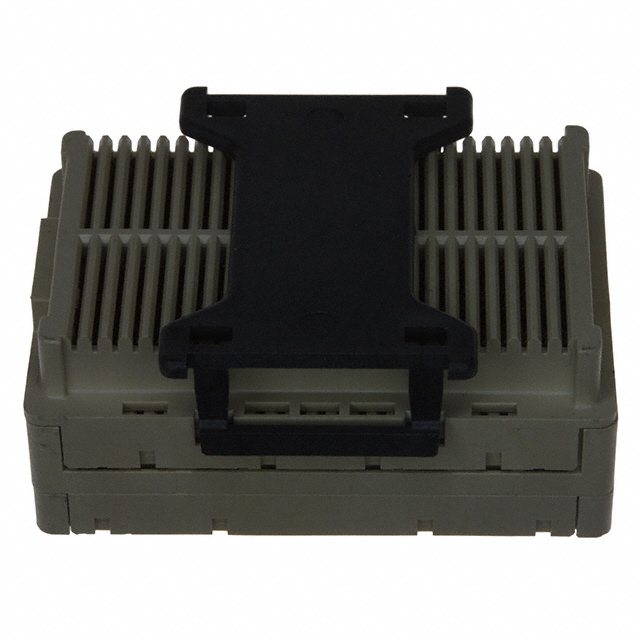

10081496-001

Active

Amphenol ICC (FCI)

CONN DIFF ARRAY RCPT 200POS SMD

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN DIFF ARRAY RCPT 200POS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	10081496-001

Connector Type	Differential Pair Array, Female
Contact Finish	GXT™, Gold or Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Height Above Board	0.414 in
Height Above Board	10.51 mm
Mated Stacking Heights	31 mm, 26 mm, 24 mm, 36 mm, 21 mm, 23 mm
Mounting Type	Surface Mount
Number of Positions	200
Number of Positions [custom]	100
Number of Rows [custom]	18
Pitch [x]	1.3 mm
Pitch [x]	0.051 in

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Height Above Board	Height Above Board	Mated Stacking Heights	Mounting Type	Number of Positions	Number of Positions [custom]	Contact Finish	Number of Rows [custom]	Pitch [x]	Pitch [x]
Amphenol ICC (FCI) 10081496-001	0.76 Ám	30 Áin	Differential Pair Array Female	0.414 in	10.51 mm	21 mm 23 mm 24 mm 26 mm 31 mm 36 mm	Surface Mount	200	100	Gold or Gold GXT™	18	1.3 mm	0.051 in
Amphenol ICC (FCI) 10081496-201	0.76 Ám	30 Áin	Differential Pair Array Female	0.414 in	10.51 mm	21 mm 23 mm 24 mm 26 mm 31 mm 36 mm	Surface Mount	200	100	Gold or Gold GXT™	18	1.3 mm	0.051 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

200 Signal (100 Pair) Position Connector Differential Pair Array, Female Surface Mount Gold or Gold, GXT™
