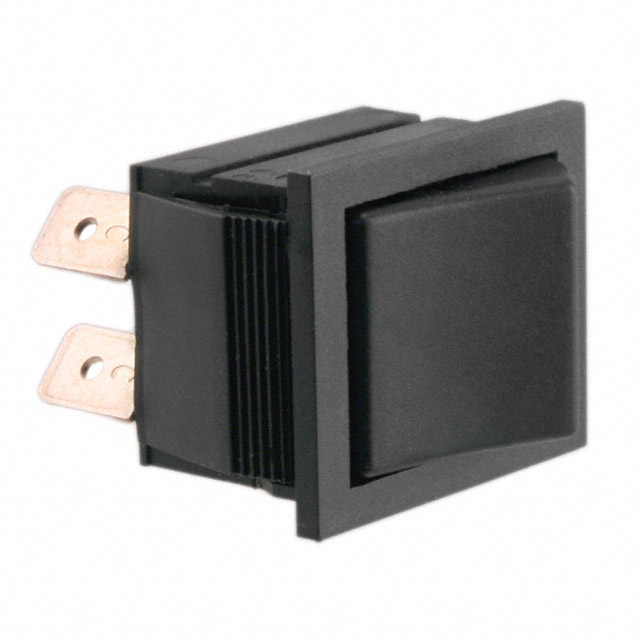

C1350AABB

Active

BULGIN LIMITED

SWITCH ROCKER DPST-NO 20A 250V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH ROCKER DPST-NO 20A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Features	Approval Agency	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap	Termination Style	Current Rating (Amps)	Voltage Rating - DC	Actuator Marking	Actuator Type	Switch Function	Voltage Rating - AC	Ingress Protection
BULGIN LIMITED C1350AABBXGW1	Panel Mount Snap-In	Sealing Boot	CSA UL	DPST-NO	22.4 mm	27.3 mm	Black	Quick Connect - 0.250" (6.3mm)	20 A	24 V	O -	Concave (Curved)	On-Off	250 V	IP65 - Dust Tight Water Resistant
BULGIN LIMITED C1350AABB-602AW-B	Panel Mount Snap-In	Antimicrobial	CSA UL	DPST-NO	22.4 mm	27.3 mm	Black	Quick Connect - 0.250" (6.3mm)	20 A	24 V	O -	Concave (Curved)	On-Off	250 V
BULGIN LIMITED C1350AABB	Panel Mount Snap-In		CSA UL	DPST-NO	22.4 mm	27.3 mm	Black	Quick Connect - 0.250" (6.3mm)	20 A	24 V	No Marking	Concave (Curved)	On-Off	250 V
BULGIN LIMITED C1350AABR-602AW	Panel Mount Snap-In		CSA UL	DPST-NO	22.4 mm	27.3 mm	Red	Quick Connect - 0.250" (6.3mm)	20 A	24 V	O -	Concave (Curved)	On-Off	250 V
BULGIN LIMITED C1350AABB-1091W	Panel Mount Snap-In		CSA UL	DPST-NO	22.4 mm	27.3 mm	Black	Quick Connect - 0.250" (6.3mm)	20 A	24 V	O I	Concave (Curved)	On-Off	250 V
BULGIN LIMITED C1350AABB-602AW	Panel Mount Snap-In		CSA UL	DPST-NO	22.4 mm	27.3 mm	Black	Quick Connect - 0.250" (6.3mm)	20 A	24 V	O -	Concave (Curved)	On-Off	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST-NO 20A (AC/DC) 250 V Panel Mount, Snap-In
