Technical Specifications
Parameters and characteristics for this part
| Specification | STM6601DS2BDM6F |
|---|---|
| Mounting Type | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Open Drain or Open Collector |

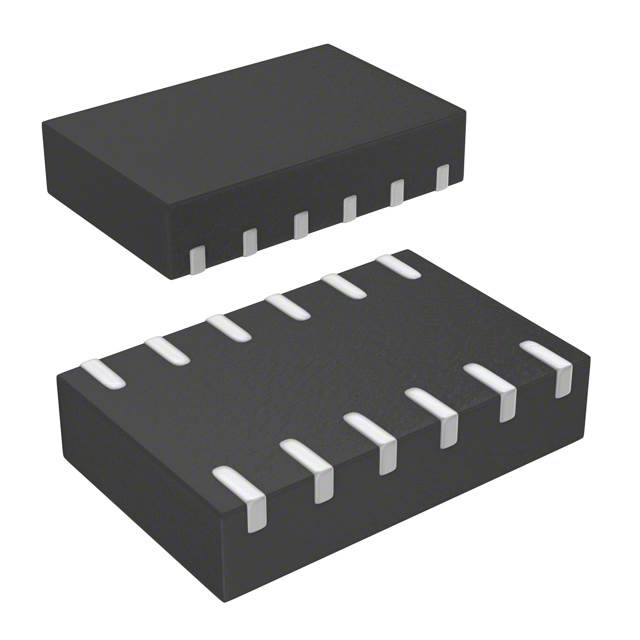

| Package / Case | 12-WFDFN |
| Reset | Active Low |
| Reset Timeout | 240 ms |
| Supplier Device Package | 12-TDFN (2x3) |
| Type | Smart ON/OFF Controller |
| Voltage - Threshold | 3.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STM6601 Series
The STM6600-01 devices monitor the state of connected push-button(s) as well as sufficient supply voltage. An enable output controls power for the application through the MOSFET transistor, DC-DC converter, regulator, etc. If the supply voltage is above a precise voltage threshold, the enable output can be asserted by a simple press of the button. Factory-selectable supply voltage thresholds are determined by highly accurate and temperature-compensated references. An interrupt is asserted by pressing the push-button during normal operation and can be used to request a system power-down. The interrupt is also asserted if undervoltage is detected. By a long push of one button (PB) or two buttons (PBandSR) either a reset is asserted or power for the application is disabled depending on the option used.
The device also offers additional features such as precise 1.5 V voltage reference with very tight accuracy of 1%, separate output indicating undervoltage detection and separate output for distinguishing between interrupt by push-button or undervoltage.
The device consumes very low current of 6 μA during normal operation and only 0.6 μA current during standby.
