2113-1-00-44-00-00-07-0

Active

Mill-Max Manufacturing Corp.

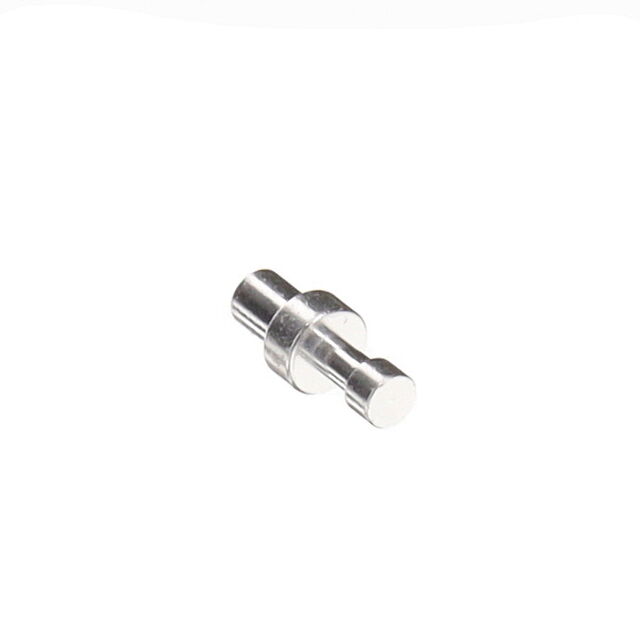

TERM TURRET SINGLE L=2.39MM

Deep-Dive with AI

Search across all available documentation for this part.

2113-1-00-44-00-00-07-0

Active

Mill-Max Manufacturing Corp.

TERM TURRET SINGLE L=2.39MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2113-1-00-44-00-00-07-0

Board Thickness	0.031 in
Board Thickness	0.79 mm
Contact Finish	Silver
Contact Finish Thickness	300 µin
Contact Finish Thickness	7.62 µm
Contact Material	Brass Alloy
Diameter - Turret Head [diameter]	1.02 mm
Diameter - Turret Head [diameter]	0.04 in
Flange Diameter [diameter]	0.062 in
Flange Diameter [diameter]	1.57 mm
Insulation	Non-Insulated
Length - Above Board [x]	0.094 in
Length - Above Board [x]	2.39 mm
Length - Below Flange [x]	0.053 in
Length - Below Flange [x]	1.35 mm
Length - Overall [x]	0.147 in
Length - Overall [x]	3.73 mm
Mounting Hole Diameter [diameter]	1.09 mm
Mounting Hole Diameter [diameter]	0.043 in
Mounting Type	Through Hole
Number of Turrets	Single
Staking Side ID [diameter]	0.66 mm
Staking Side ID [diameter]	0.026 in
Staking Side OD [diameter]	1.02 mm
Staking Side OD [diameter]	0.04 in
Terminal Type	Single End
Termination	Swage

2113-1 Series

Part	Termination	Mounting Type	Contact Material	Length - Overall [x]	Length - Overall [x]	Length - Above Board [x]	Length - Above Board [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Turrets	Board Thickness	Board Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Staking Side OD [diameter]	Staking Side OD [diameter]	Terminal Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Insulation	Length - Below Flange [x]	Length - Below Flange [x]	Diameter - Turret Head [diameter]	Diameter - Turret Head [diameter]	Staking Side ID [diameter]	Staking Side ID [diameter]	Staking Side ID	Staking Side ID
Mill-Max Manufacturing Corp. 2113-1-00-50-00-00-07-0	Swage	Through Hole	Brass Alloy	0.147 in	3.73 mm	0.094 in	2.39 mm	300 µin	7.62 µm	Single	0.031 in	0.79 mm	1.09 mm	0.043 in	Tin-Lead	1.02 mm	0.04 in	Single End	0.062 in	1.57 mm	Non-Insulated	0.053 in	1.35 mm	1.02 mm	0.04 in	0.66 mm	0.026 in
Mill-Max Manufacturing Corp. 2113-1-00-44-00-00-07-0	Swage	Through Hole	Brass Alloy	0.147 in	3.73 mm	0.094 in	2.39 mm	300 µin	7.62 µm	Single	0.031 in	0.79 mm	1.09 mm	0.043 in	Silver	1.02 mm	0.04 in	Single End	0.062 in	1.57 mm	Non-Insulated	0.053 in	1.35 mm	1.02 mm	0.04 in	0.66 mm	0.026 in
Mill-Max Manufacturing Corp. 2113-1-00-01-00-00-07-0	Swage	Through Hole	Brass Alloy	0.147 in	3.73 mm	0.094 in	2.39 mm	200 Áin	5.08 Ám	Single	0.031 in	0.79 mm	1.09 mm	0.043 in	Tin-Lead	1.02 mm	0.04 in	Single End	0.062 in	1.57 mm	Non-Insulated	0.053 in	1.35 mm	1.02 mm	0.04 in	0.66 mm	0.026 in
Mill-Max Manufacturing Corp. 2113-1-00-80-00-00-07-0	Swage	Through Hole	Brass Alloy	0.147 in	3.73 mm	0.094 in	2.39 mm	200 Áin	5.08 Ám	Single	0.031 in	0.79 mm	1.09 mm	0.043 in	Tin	1.02 mm	0.04 in	Single End	0.062 in	1.57 mm	Non-Insulated	0.053 in	1.35 mm	1.02 mm	0.04 in			0.51 mm	0.02 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.73
		10	$ 0.62
		100	$ 0.56
		1000	$ 0.40
		5000	$ 0.35
		10000	$ 0.34

Description

General part information

2113-1 Series

Terminal Turret Connector Single End 0.094" (2.39mm) Silver
