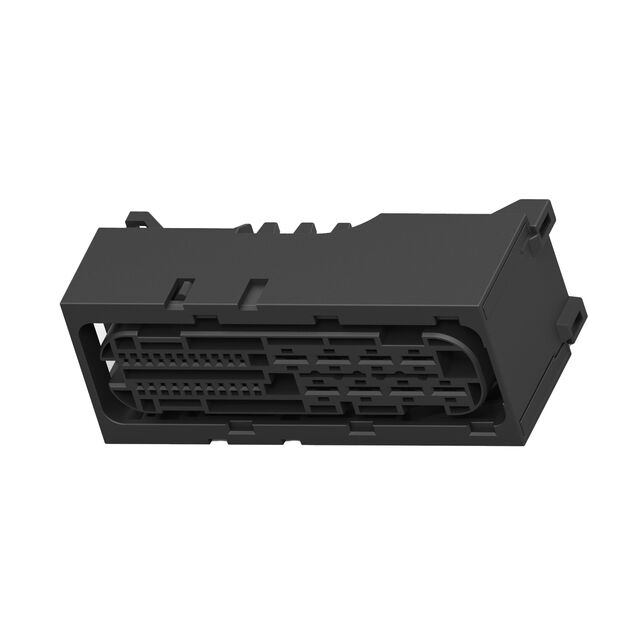

1452915-2

Active

TE Connectivity Raychem Cable Protection

30POS MIXED MQS REC SEALED

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

30POS MIXED MQS REC SEALED

Technical Specifications

Parameters and characteristics for this part

Specification	1452915-2

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	30
Number of Rows	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C

Part	Number of Rows	Contact Type	Color	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Fastening Type	Insulation Material	Mounting Type	Connector Type
TE Connectivity Raychem Cable Protection 1452915-2	2	Female Socket	Black	Crimp	100 °C	-40 °C	30	Latch Holder	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Housing, Housing for Female Terminals, Wire-to-Board, 2.5 mm / 9.1 mm [.1 in / .36 in] Centerline, Black, Wire & Cable, Power & Signal
