341-090-521-203

Active

EDAC Inc.

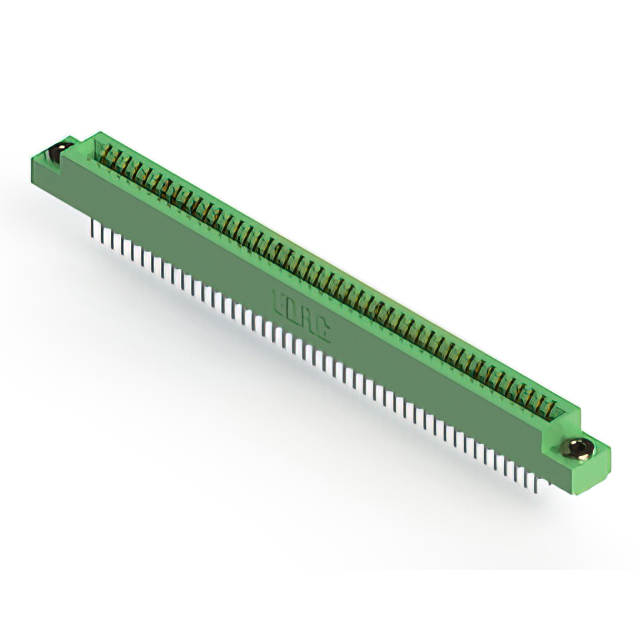

CARD EDGE CONNECTOR, 90 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

341-090-521-203

Active

EDAC Inc.

CARD EDGE CONNECTOR, 90 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-090-521-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	90
Number of Positions/Bay/Row [custom]	45
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

341-090 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Card Type	Termination	Contact Material	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Type	Number of Positions/Bay/Row [custom]	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch [x]	Pitch [x]	Termination Rows	Read Out	Contact Finish	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Features
EDAC Inc. 341-090-521-204	10 Áin	0.25 Ám	Through Hole	90	Non Specified - Dual Edge	Solder	Copper Alloy	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Semi Bellows	45	Polyester Thermoplastic	-40 °C	105 ░C	2	2.54 mm	0.1 in	2	Dual	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green
EDAC Inc. 341-090-521-203	10 Áin	0.25 Ám	Through Hole	90	Non Specified - Dual Edge	Solder	Copper Alloy	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Semi Bellows	45	Polyester Thermoplastic	-40 °C	105 ░C	2	2.54 mm	0.1 in	2	Dual	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green
EDAC Inc. 341-090-500-201	10 Áin	0.25 Ám	Through Hole	90	Non Specified - Dual Edge	Solder Eyelet(s)	Copper Alloy				Semi Bellows	45	Diallyl Phthalate (DAP)	-40 °C	105 ░C	2	2.54 mm	0.1 in	2	Dual	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green
EDAC Inc. 341-090-521-201	10 Áin	0.25 Ám	Through Hole	90	Non Specified - Dual Edge	Solder	Copper Alloy				Semi Bellows	45	Polyester Thermoplastic	-40 °C	105 ░C	2	2.54 mm	0.1 in	2	Dual	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green
EDAC Inc. 341-090-556-203	10 Áin	0.25 Ám	Through Hole	90	Non Specified - Dual Edge	Solder	Copper Alloy	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Semi Bellows	45	Polyester Thermoplastic	-40 °C	105 ░C	2	2.54 mm	0.1 in	2	Dual	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Card Extender
EDAC Inc. 341-090-524-201	10 Áin	0.25 Ám	Through Hole	90	Non Specified - Dual Edge	Solder	Copper Alloy				Semi Bellows	45	Polyester Thermoplastic	-40 °C	105 ░C	2	2.54 mm	0.1 in	2	Dual	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green
EDAC Inc. 341-090-524-208	10 Áin	0.25 Ám	Through Hole	90	Non Specified - Dual Edge	Solder	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		Semi Bellows	45	Polyester Thermoplastic	-40 °C	105 ░C	2	2.54 mm	0.1 in	2	Dual	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green
EDAC Inc. 341-090-556-204	10 Áin	0.25 Ám	Through Hole	90	Non Specified - Dual Edge	Solder	Copper Alloy	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Semi Bellows	45	Polyester Thermoplastic	-40 °C	105 ░C	2	2.54 mm	0.1 in	2	Dual	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Card Extender
EDAC Inc. 341-090-560-207	10 Áin	0.25 Ám	Through Hole	90	Non Specified - Dual Edge	Solder	Copper Alloy		Flush Mount M3 Threaded Insert Top Opening		Semi Bellows	45	Polyester Thermoplastic	-40 °C	105 ░C	2	2.54 mm	0.1 in	2	Dual	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Card Extender
EDAC Inc. 341-090-520-201	10 Áin	0.25 Ám	Through Hole	90	Non Specified - Dual Edge	Solder	Copper Alloy				Semi Bellows	45	Polyester Thermoplastic	-40 °C	105 ░C	2	2.54 mm	0.1 in	2	Dual	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 19.09
LCSC	Piece	1	$ 10.61
		200	$ 4.11
		500	$ 3.96
		1000	$ 3.89

Description

General part information

341-090 Series

90 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
