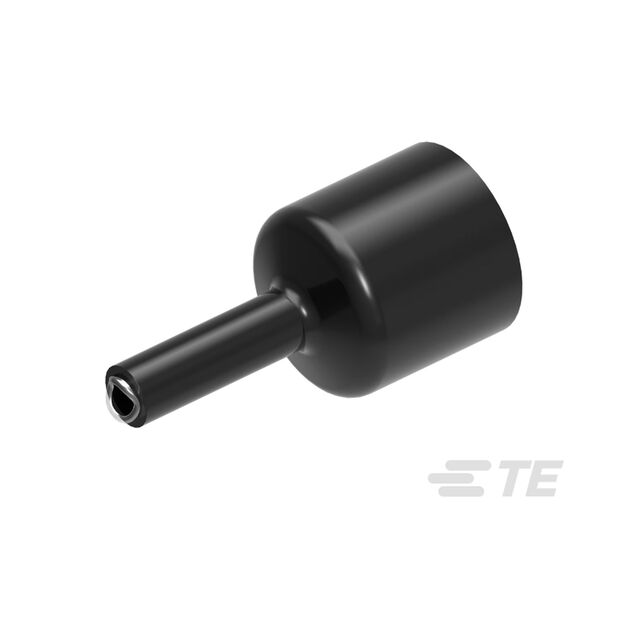

NB08184001
ActiveTE Connectivity Raychem Cable Protection
HEATSHRINK 0.315" BLACK METER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NB08184001
ActiveTE Connectivity Raychem Cable Protection
HEATSHRINK 0.315" BLACK METER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NB08184001 |
|---|---|
| Color | Black |
| Features | Flame Retardant, Fluid Resistant, Adhesive Lined |
| Inner Diameter - Recovered | 0.079 in |
| Inner Diameter - Recovered | 2.01 mm |
| Inner Diameter - Supplied [diameter] | 8 mm |
| Inner Diameter - Supplied [diameter] | 0.315 in |
| Length | Enter Number of Meters in Order Quantity |
| Material | Polyolefin (PO), Irradiated |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.99 mm |
| Recovered Wall Thickness | 0.039 in |
| Shelf Life | 36 Months |
| Shrink Temperature | 80 °C |
| Shrinkage Ratio | 4 to 1 |
| Spool Size | 75 m |
| Spool Size | 246.1 ft |
| Storage/Refrigeration Temperature [Max] | 35 °C |
| Storage/Refrigeration Temperature [Min] | 0 °C |
| Type | Semi-Flexible, Tubing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 11.69 | |
| 2 | $ 10.75 | |||
| 3 | $ 10.24 | |||
| 5 | $ 9.62 | |||
| 7 | $ 9.24 | |||
| 10 | $ 8.85 | |||
| 25 | $ 7.92 | |||
| 50 | $ 7.29 | |||
| 100 | $ 6.71 | |||
Description
General part information
NB08 Series
Heat Shrink Tubing, Semi-Flexible 0.315" (8.00mm) 4 to 1 Black Enter Number of Meters in Order Quantity
