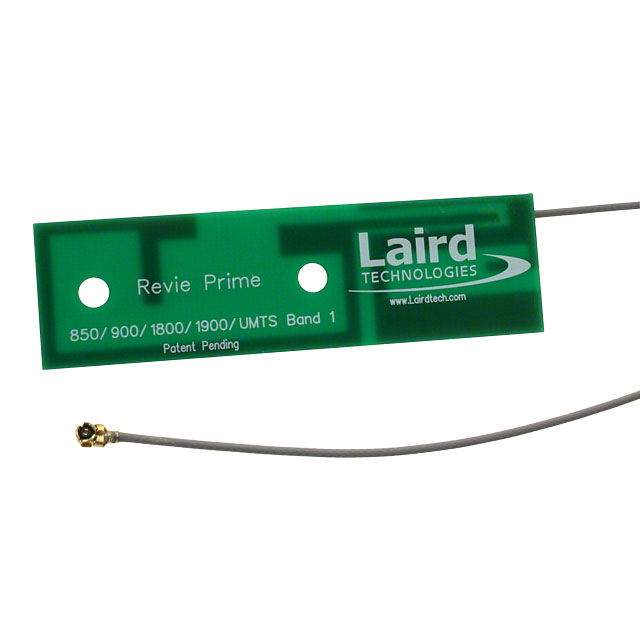

EPR8221A1-15UFL
ActiveEzurio LLC
RF ANT 900MHZ/1.9GHZ PCB TRACE
Deep-Dive with AI
Search across all available documentation for this part.
EPR8221A1-15UFL
ActiveEzurio LLC
RF ANT 900MHZ/1.9GHZ PCB TRACE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EPR8221A1-15UFL |
|---|---|
| Antenna Type | PCB Trace |
| Frequency (Center/Band) | 900 MHz, 1.9 GHz |
| Frequency Range [Max] | 960 MHz, 2.17 GHz |
| Frequency Range [Min] | 1.71 GHz, 824 MHz |
| Gain | 3.8 dBi, 2.2 dBi |
| Height (Max) | 0.8 mm |
| Height (Max) [Max] | 0.031 in |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| Termination | I-PEX MHF1, U.FL (UMCC) |
| VSWR | 3, 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.10 | |
Description
General part information
EPR8221 Series
RF ANTENNA PCB Trace U.FL (UMCC), I-PEX MHF1 Surface Mount
Documents
Technical documentation and resources
No documents available
