422-029-520-100
ActiveEDAC Inc.

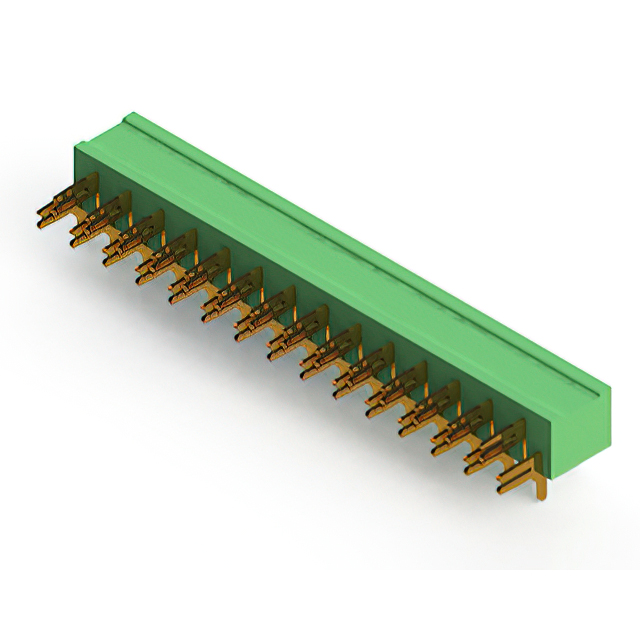

CONN EDGE DUAL FMALE 29POS 0.200
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
422-029-520-100
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 29POS 0.200
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 422-029-520-100 |
|---|---|
| Card Thickness [Max] | 2.36 mm |
| Card Thickness [Max] | 0.093 in |
| Card Thickness [Min] | 1.57 mm |
| Card Thickness [Min] | 0.062 in |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 29 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Termination | Solder |
| Termination Rows | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 28.99 | |
Description
General part information
422-029 Series
29 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
