IPW60R280P6FKSA1
ActiveInfineon Technologies
COOLMOS™ P6 N-CHANNEL SUPERJUNCTION MOSFET 600 V ; TO-247 PACKAGE; 280 MOHM; PRICE/PERFORMANCE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IPW60R280P6FKSA1
ActiveInfineon Technologies
COOLMOS™ P6 N-CHANNEL SUPERJUNCTION MOSFET 600 V ; TO-247 PACKAGE; 280 MOHM; PRICE/PERFORMANCE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IPW60R280P6FKSA1 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 13.8 A |
| Drain to Source Voltage (Vdss) | 600 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [x] | 25.5 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 1190 pF |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

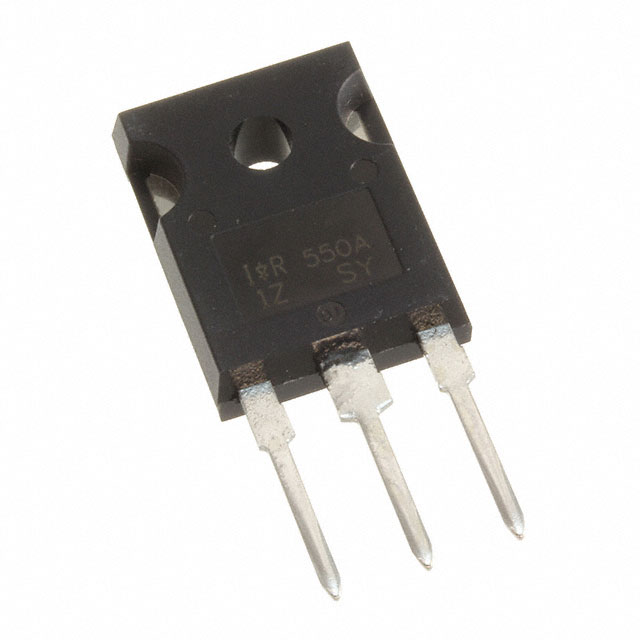

| Package / Case | TO-247-3 |
| Power Dissipation (Max) | 104 W |
| Rds On (Max) @ Id, Vgs | 280 mOhm |
| Supplier Device Package | PG-TO247-3 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.79 | |
| 10 | $ 2.49 | |||
| 100 | $ 1.74 | |||
| 500 | $ 1.43 | |||
| 1000 | $ 1.33 | |||
| 2000 | $ 1.30 | |||
Description
General part information
IPW60R280 Series
InfineonsCoolMOS™ P6 superjunction MOSFETfamily is designed to enable higher system efficiency whilst being easy to design in. CoolMOS™ P6 closes the gap between technologies which focus on delivering ultimate performance and those which concentrate more on ease-of-use.
