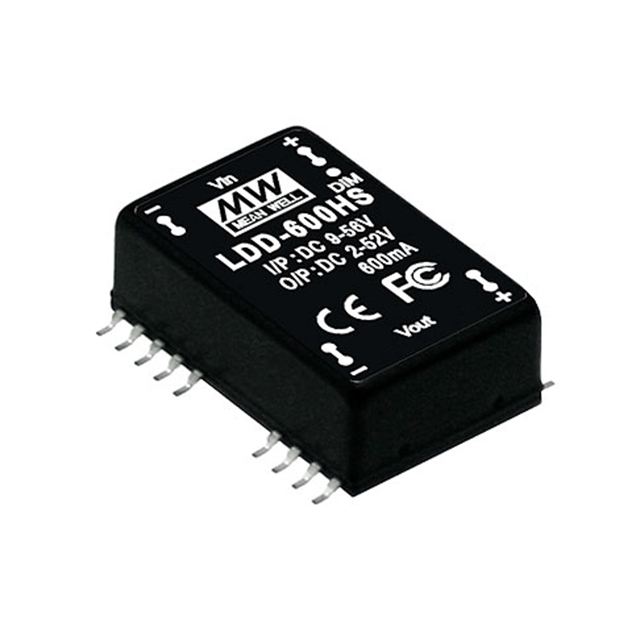

LDD-600HS

Obsolete

MEAN WELL USA Inc.

LED DRIVER CC BUCK 2-52V 600MA

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

LED DRIVER CC BUCK 2-52V 600MA

Technical Specifications

Parameters and characteristics for this part

Part	Dimming	Voltage - Input (Max) [Max]	Mounting Type	Package / Case	Package / Case	Efficiency	Topology	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Type	Approval Agency	Voltage - Output [Max]	Voltage - Output [Min]	Number of Outputs	Features	Current - Output (Max) [Max]
MEAN WELL USA Inc. LDD-600H	PWM	56 V	Through Hole	9 PC Pad	24-DIP Module	97 %	Buck	9 V	85 °C	-40 °C	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	Constant Current	CE	52 V	2 V	1	OTP Remote On/Off SCP	600 mA
MEAN WELL USA Inc. LDD-600HS	PWM	56 V	Surface Mount		24-SMD Module 18 Leads	96 %	Buck	9 V	85 °C	-40 °C	20.3 mm	1.25 "	31.8 mm	0.8 in	0.45 "	11.4 mm	Constant Current	CE	52 V	2 V	1	OTP Remote On/Off SCP	600 mA
MEAN WELL USA Inc. LDD-600L	PWM	36 V	Through Hole	5 Leads	6-DIP Module	95 %	Buck	9 V	85 °C	-40 °C	9.9 mm	0.89 in	22.6 mm	0.39 "	0.35 "	8.9 mm	Constant Current	CE	32 VDC	2 V	1	OTP Remote On/Off SCP	600 mA
MEAN WELL USA Inc. LDD-600LS	PWM	32 V	Surface Mount		16-SMD Module	95 %	Buck	9 V	85 °C	-40 °C	10.5 mm	1 in	25.4 mm	0.41 in	0.37 in	9.3 mm	Constant Current	CE	28 V	2 V	1	OTP Remote On/Off SCP	600 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 11.79

General part information

600mA 2 ~ 52V Constant Current LED Driver Buck Topology 1 Output
