SRN4026-101M
ActiveBourns Inc.

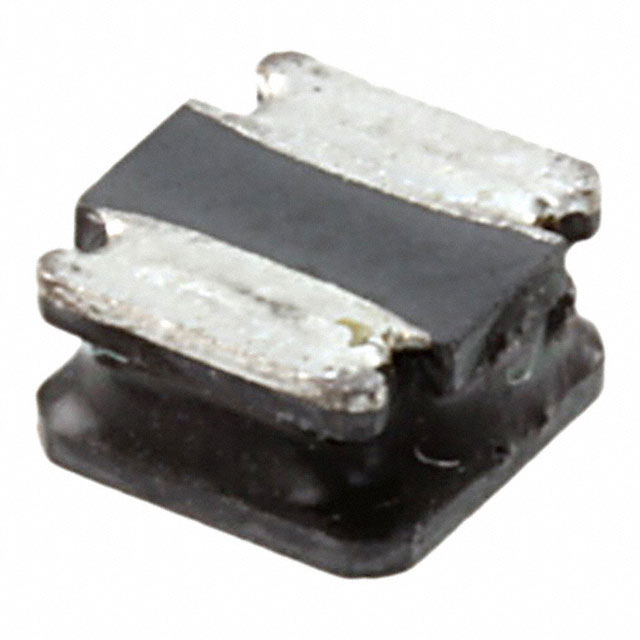

POWER INDUCTOR (SMD), 100 ΜH, 300 MA, SEMISHIELDED, 300 MA, SRN4026 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
SRN4026-101M
ActiveBourns Inc.
POWER INDUCTOR (SMD), 100 ΜH, 300 MA, SEMISHIELDED, 300 MA, SRN4026 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRN4026-101M |
|---|---|
| Current Rating (Amps) | 300 mA |
| DC Resistance (DCR) [Max] | 1.2 Ohm |
| Frequency - Self Resonant | 7 MHz |
| Height - Seated (Max) [Max] [z] | 2.5 mm |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Inductance | 100 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 30, 796 kHz |
| Shielding | Shielded |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [y] | 0.157 in |
| Size / Dimension [y] | 4 mm |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
