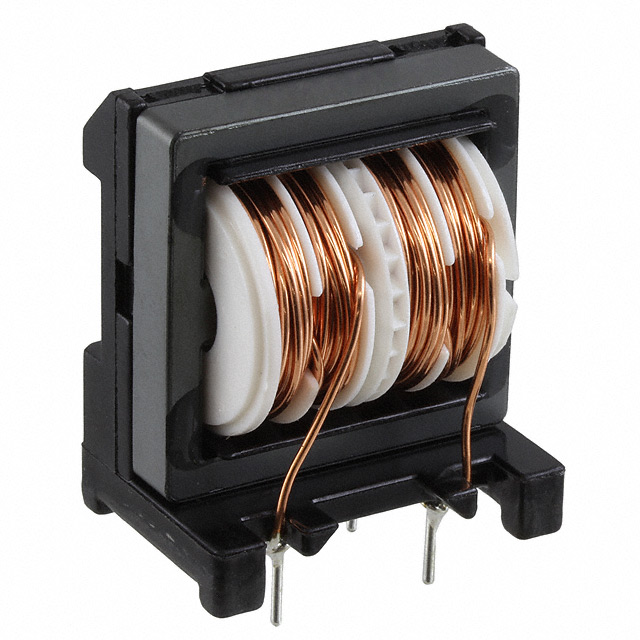

SS28V-R25080-CH
ActiveKEMET
COMMON MODE CHOKES DUAL 8000UH 1KHZ 2.5A 0.16OHM DCR THRU-HOLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SS28V-R25080-CH
ActiveKEMET
COMMON MODE CHOKES DUAL 8000UH 1KHZ 2.5A 0.16OHM DCR THRU-HOLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SS28V-R25080-CH |
|---|---|
| Current Rating (Max) [Max] | 2.5 A |
| DC Resistance (DCR) (Max) [Max] | 160 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.398 in |
| Height (Max) | 35.5 mm |
| Inductance @ Frequency | 8 mH, 1 kHz |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 30 mm |
| Size / Dimension [x] | 1.181 in |
| Size / Dimension [y] | 22 mm |
| Size / Dimension [y] | 0.866 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SS28V Series
8 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2.5A DCR 160mOhm
