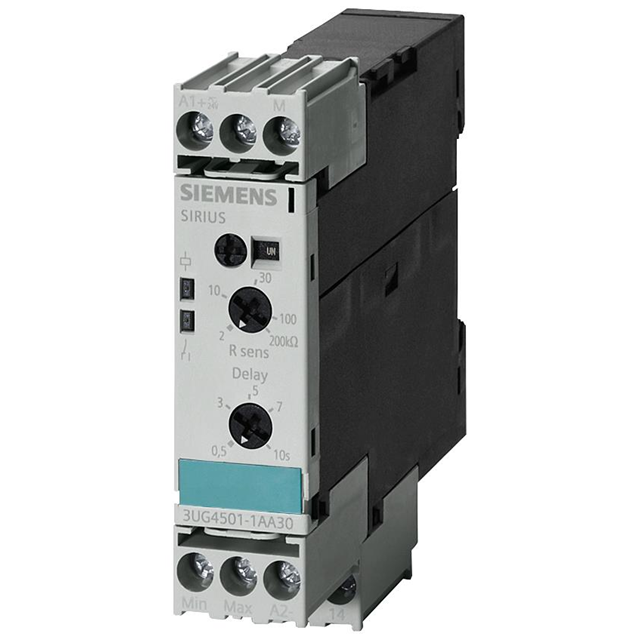

3UG45011AA30
ActiveSiemens
ANALOG MONITORING RELAY
Deep-Dive with AI
Search across all available documentation for this part.
3UG45011AA30
ActiveSiemens
ANALOG MONITORING RELAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3UG45011AA30 |
|---|---|
| Contact Rating @ Voltage | 400 VAC, 4 A |
| Features | Adjustable Sensitivity |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Sensitivity [Max] | 200 kOhm |
| Sensitivity [Min] | 2 kOhm |
| Termination Style | Screw Terminal |
| Type | High/Low Level |
| Voltage - Supply | 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 217.20 | |
| 10 | $ 209.96 | |||
| 25 | $ 195.48 | |||
| 50 | $ 192.58 | |||
Description
General part information
3UG4501 Series
Liquid Level Controller High/Low Level 24VAC/DC DIN Rail
Documents
Technical documentation and resources
No documents available
