JB5DS04MM11N
ActiveJAE Electronics

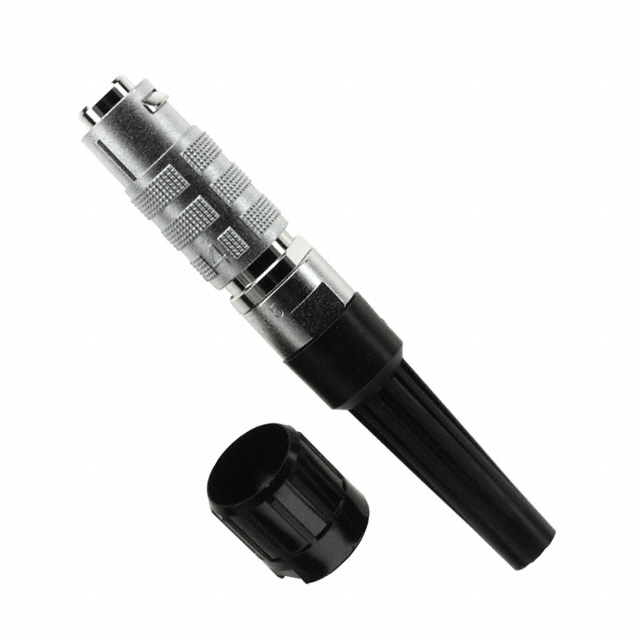

CONN PLUG MALE 4POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
JB5DS04MM11N
ActiveJAE Electronics
CONN PLUG MALE 4POS SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JB5DS04MM11N |
|---|---|
| Applications | Telecommunications, Medical, Test & Measurement |
| Cable Opening [Max] [diameter] | 0.197 in |
| Cable Opening [Max] [diameter] | 5 mm |
| Cable Opening [Min] [diameter] | 0.177 in |
| Cable Opening [Min] [diameter] | 4.5 mm |
| Color | Black, Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Features | Clamp, Strain Relief |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Synthetic Resin |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | S |
| Shielding | Shielded |
| Voltage Rating | 320 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 37.65 | |
| 10 | $ 32.97 | |||
| 25 | $ 31.54 | |||
| 50 | $ 30.53 | |||
| 100 | $ 29.51 | |||
| 250 | $ 27.88 | |||
Description
General part information
JB5DS04M Series
4 Position Circular Connector Plug, Male Pins Solder Cup
