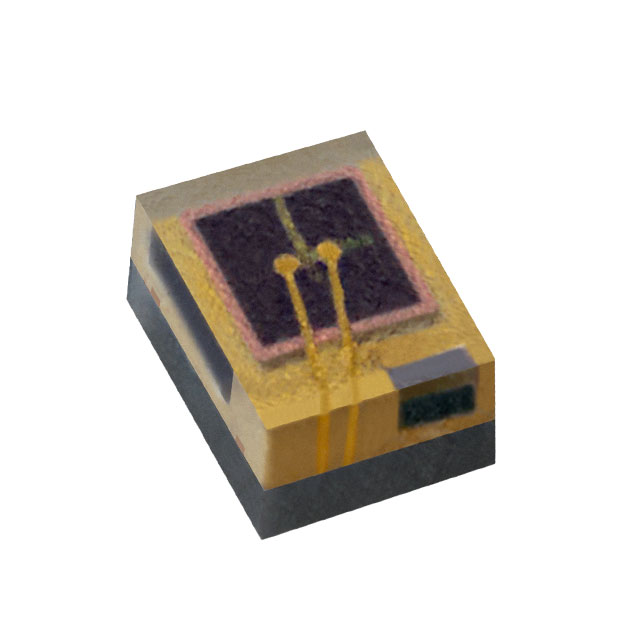

L1IZ-0850000000000

Active

Lumileds

LMIL1IZ-0850000000000

Search across all available documentation for this part.

Active

Lumileds

LMIL1IZ-0850000000000

Technical Specifications

Parameters and characteristics for this part

Specification	L1IZ-0850000000000

Current - DC Forward (If) (Max)	1 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-30 °C
Orientation	Top View
Package / Case	2-SMD, No Lead
Radiant Intensity (Ie) Min @ If [Min]	250 mW/sr
Type	Infrared (IR)
Viewing Angle	150 °
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength	850 nm

LMIL1IZ-0850000000000

Part	Viewing Angle	Mounting Type	Wavelength	Radiant Intensity (Ie) Min @ If [Min]	Package / Case	Current - DC Forward (If) (Max)	Voltage - Forward (Vf) (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Orientation
Lumileds L1IZ-0850000000000	150 °	Surface Mount	850 nm	250 mW/sr	2-SMD, No Lead	1 A	3.2 V	-30 °C	125 °C	Infrared (IR)	Top View

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 850nm 3.2V 1A 250mW/sr @ 1A (Typ) 150° 2-SMD, No Lead
