Q-2M01O000R024i

Active

Amphenol Custom Cable

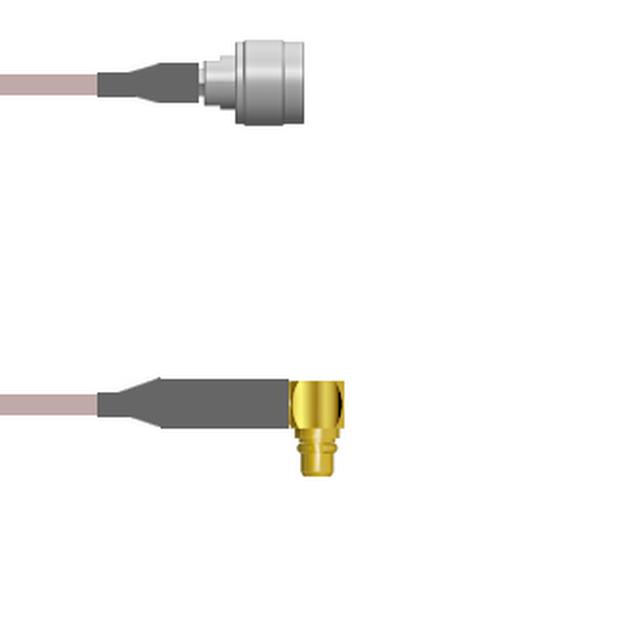

CBL ASSY MMCX-NTYPE PLUG-PLG 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2M01O000R024i

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE PLUG-PLG 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2M01O000R024i

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-2M01O0 Series

Part	Style	Cable Type	2nd Connector	Features	2nd Contact Gender	1st Contact Gender	Frequency - Max [Max]	Length	Length	Length	Overall Impedance	2nd Connector Mounting Type	Color	1st Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-2M01O000R048i	MMCX to N-Type	RG-316 DB	N-Type Plug	Shielded	Male	Male	6000 MHz	1200 mm	4 ft	48 in	50 Ohms	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M01O000R001M	MMCX to N-Type	RG-316 DB	N-Type Plug	Shielded	Male	Male	6000 MHz	1 m	3.3 ft	39.4 in	50 Ohms	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M01O000R0.5M	MMCX to N-Type	RG-316 DB	N-Type Plug	Shielded	Male	Male	6000 MHz	50 cm		19.69 "	50 Ohms	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M01O000R.25M	MMCX to N-Type	RG-316 DB	N-Type Plug	Shielded	Male	Male	6000 MHz				50 Ohms	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)	9.843 "	250 mm
Amphenol Custom Cable Q-2M01O000R036i	MMCX to N-Type	RG-316 DB	N-Type Plug	Shielded	Male	Male	6000 MHz	91.44 cm		36 in	50 Ohms	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M01O000R003i	MMCX to N-Type	RG-316 DB	N-Type Plug	Shielded	Male	Male	6000 MHz	76.2 mm		3 in	50 Ohms	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M01O000R072i	MMCX to N-Type	RG-316 DB	N-Type Plug	Shielded	Male	Male	6000 MHz	1.8 m	6 ft	72 in	50 Ohms	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M01O000R024i	MMCX to N-Type	RG-316 DB	N-Type Plug	Shielded	Male	Male	6000 MHz	609.6 mm		24 "	50 Ohms	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M01O000R108i	MMCX to N-Type	RG-316 DB	N-Type Plug	Shielded	Male	Male	6000 MHz	2.7 m	9 ft	108 in	50 Ohms	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M01O000R012i	MMCX to N-Type	RG-316 DB	N-Type Plug	Shielded	Male	Male	6000 MHz	304.8 mm		12 "	50 Ohms	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 139.24
		25	$ 136.50
		50	$ 133.77
		100	$ 131.04
		250	$ 128.30

Description

General part information

Q-2M01O0 Series

Cable Assembly Coaxial MMCX to N-Type RG-316 DB 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
