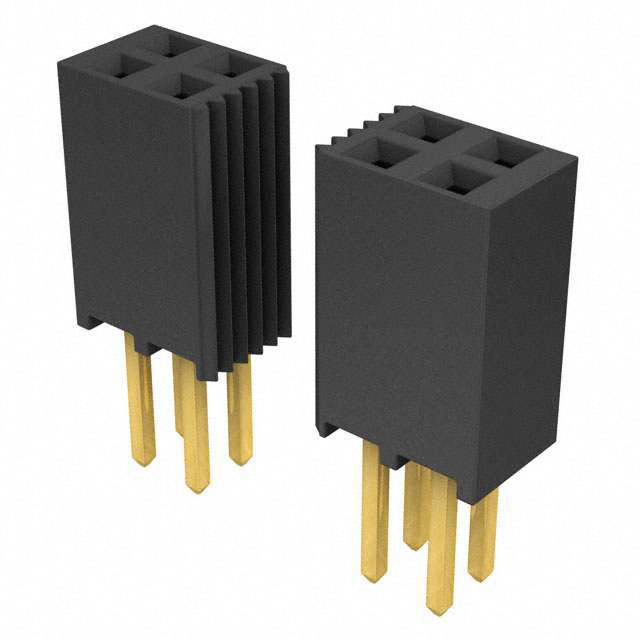

SSQ-143-02-G-D

Active

Samtec Inc.

CONN RCPT 86POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSSQ Through Hole Footprint Datasheet

SSQ-143-02-G-D

Active

Samtec Inc.

CONN RCPT 86POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsSSQ Through Hole Footprint Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSQ-143-02-G-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	4.93 mm
Contact Length - Post	0.194 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	86
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	465 VAC, 655 VDC

SSQ-143 Series

Part	Mounting Type	Insulation Height	Insulation Height	Voltage Rating	Fastening Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Shape	Contact Material	Contact Finish - Post	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Insulation Material	Termination	Number of Positions	Material Flammability Rating	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Number of Rows	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]
Samtec Inc. SSQ-143-03-G-D	Through Hole	0.335 "	8.51 mm	465 VAC 655 VDC	Push-Pull	Receptacle	0.51 µm	20 µin	2.54 mm	0.1 in	All	Square	Phosphor Bronze	Gold	Forked	3 µin	0.076 µm	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	86	UL94 V-0	Gold	0.1 in	2.54 mm	2	Black	-55 °C	125 °C	10 mm	0.394 in
Samtec Inc. SSQ-143-02-G-S-RA	Through Hole Right Angle			465 VAC 655 VDC	Push-Pull	Receptacle	0.51 µm	20 µin			All	Square	Phosphor Bronze	Gold	Forked	3 µin	0.076 µm	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	43	UL94 V-0	Gold	0.1 in	2.54 mm	1	Black	-55 °C	125 °C	2.54 mm	0.1 in	0.095 in	2.41 mm
Samtec Inc. SSQ-143-03-S-S	Through Hole	0.335 "	8.51 mm	465 VAC 655 VDC	Push-Pull	Receptacle	0.76 Ám	30 Áin			All	Square	Phosphor Bronze	Tin	Forked			Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	43	UL94 V-0	Gold	0.1 in	2.54 mm	1	Black	-55 °C	125 °C	10 mm	0.394 in
Samtec Inc. SSQ-143-01-G-S	Through Hole	0.335 "	8.51 mm	465 VAC 655 VDC	Push-Pull	Receptacle	0.51 µm	20 µin			All	Square	Phosphor Bronze	Gold	Forked	3 µin	0.076 µm	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	43	UL94 V-0	Gold	0.1 in	2.54 mm	1	Black	-55 °C	125 °C	2.64 mm	0.104 in
Samtec Inc. SSQ-143-02-T-D-RA	Through Hole Right Angle	0.195 in	4.95 mm	465 VAC 655 VDC	Push-Pull	Receptacle			2.54 mm	0.1 in	All	Square	Phosphor Bronze	Tin	Forked			Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	86	UL94 V-0		0.1 in	2.54 mm	2	Black	-55 °C	105 ░C	2.54 mm	0.1 in
Samtec Inc. SSQ-143-02-G-D	Through Hole	0.335 "	8.51 mm	465 VAC 655 VDC	Push-Pull	Receptacle	0.51 µm	20 µin	2.54 mm	0.1 in	All	Square	Phosphor Bronze	Gold	Forked	3 µin	0.076 µm	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	86	UL94 V-0	Gold	0.1 in	2.54 mm	2	Black	-55 °C	125 °C	4.93 mm	0.194 in
Samtec Inc. SSQ-143-02-T-S	Through Hole	0.335 "	8.51 mm	465 VAC 655 VDC	Push-Pull	Receptacle					All	Square	Phosphor Bronze	Tin	Forked			Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	43	UL94 V-0		0.1 in	2.54 mm	1	Black	-55 °C	105 ░C	4.93 mm	0.194 in
Samtec Inc. SSQ-143-01-T-D	Through Hole	0.335 "	8.51 mm	465 VAC 655 VDC	Push-Pull	Receptacle			2.54 mm	0.1 in	All	Square	Phosphor Bronze	Tin	Forked			Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	86	UL94 V-0		0.1 in	2.54 mm	2	Black	-55 °C	105 ░C	2.64 mm	0.104 in
Samtec Inc. SSQ-143-02-G-D-RA	Through Hole Right Angle	0.195 in	4.95 mm	465 VAC 655 VDC	Push-Pull	Receptacle	0.51 µm	20 µin	2.54 mm	0.1 in	All	Square	Phosphor Bronze	Gold	Forked	3 µin	0.076 µm	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	86	UL94 V-0	Gold	0.1 in	2.54 mm	2	Black	-55 °C	125 °C	2.54 mm	0.1 in
Samtec Inc. SSQ-143-01-G-D	Through Hole	0.335 "	8.51 mm	465 VAC 655 VDC	Push-Pull	Receptacle	0.51 µm	20 µin	2.54 mm	0.1 in	All	Square	Phosphor Bronze	Gold	Forked	3 µin	0.076 µm	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	86	UL94 V-0	Gold	0.1 in	2.54 mm	2	Black	-55 °C	125 °C	2.64 mm	0.104 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.33
		10	$ 13.29
		100	$ 10.95
		500	$ 10.00
		1000	$ 9.63

Description

General part information

SSQ-143 Series

86 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

SSQ Through Hole Footprint

Datasheet
