704.910.4FS

Active

EAO

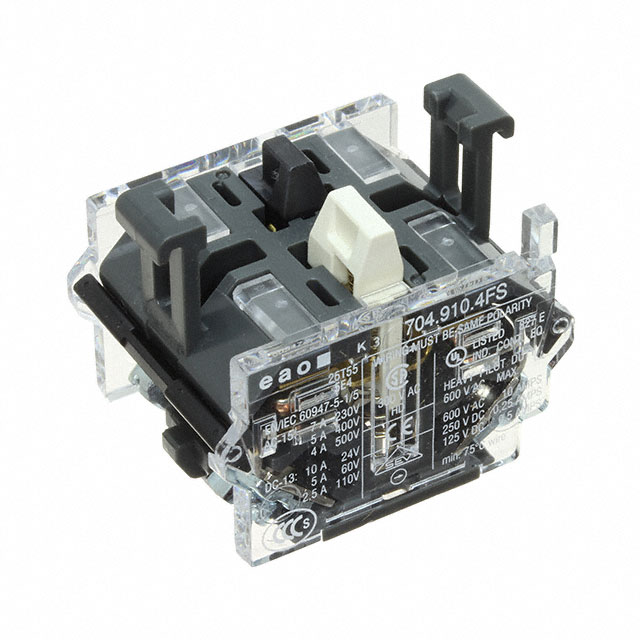

CONTACT BLOCK DPST-NC 10A 500V

Search across all available documentation for this part.

Active

EAO

CONTACT BLOCK DPST-NC 10A 500V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	704.910.4FS	704.910 Series

(Select First, Then Apply Filters) Compatible Series	04, EAO	04, EAO
Circuit	DPST-NC	SPST-NC, SPST-NO, DPST-NC, DPST-NO/NC, DPST-NO
Contact Rating @ Voltage	500 VAC, 10 A	10 - 500 VAC
Requires	Switch Body	Switch Body
Termination Style	Screw Terminal	Screw Terminal

CONTACT BLOCK SPST-NC 10A 500V

Part	Requires	Circuit	Contact Rating @ Voltage	Termination Style	(Select First, Then Apply Filters) Compatible Series
EAO 704.910.2	Switch Body	SPST-NC	10 A, 500 VAC	Screw Terminal	04, EAO
EAO 704.910.1	Switch Body	SPST-NO	10 A, 500 VAC	Screw Terminal	04, EAO
EAO 704.910.4BFS	Switch Body	DPST-NC	10 A, 500 VAC	Screw Terminal	04, EAO
EAO 704.910.5	Switch Body	DPST-NO/NC	10 A, 500 VAC	Screw Terminal	04, EAO
EAO 704.910.4	Switch Body	DPST-NC	10 A, 500 VAC	Screw Terminal	04, EAO
EAO 704.910.4FS	Switch Body	DPST-NC	10 A, 500 VAC	Screw Terminal	04, EAO
EAO 704.910.3	Switch Body	DPST-NO	10 A, 500 VAC	Screw Terminal	04, EAO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block DPST-NC 10A @ 500VAC
