90204/26 100

Active

3M (TC)

CBL RIBN 26COND 0.05 GRAY 25'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

90204/26 100

Active

3M (TC)

CBL RIBN 26COND 0.05 GRAY 25'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	90204/26 100

Cable Type	Flat Cable, Flat Jacket
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	38 AWG
First Conductor Mark	Blue
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket Color	Gray
Length	25 ft, 1 ft
Length	7.62 m, 304.8 mm
Number of Conductors	26
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL E42769
Ribbon Thickness	0.07 "
Ribbon Thickness	1.78 mm
Ribbon Width	1.34 "
Ribbon Width	34.04 mm
Shielding	Shielded
Voltage	150 V
Wire Gauge	28 AWG

90204 Series

Part	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	First Conductor Mark	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Thickness	Ribbon Thickness	Jacket Color	Ribbon Width [custom]	Ribbon Width [custom]	Ratings	Cable Type	Insulation Resistance	Features	Shielding	Voltage	Number of Conductors	Jacket (Insulation) Material	Conductor Material	Pitch [x]	Pitch [x]	Length [x]	Length [x]	Ribbon Width	Ribbon Width	Length	Length	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [x]	Ribbon Width [x]
3M (TC) 90204/34 100SF	7	38 AWG	28 AWG	Blue	-20 C	105 ░C	0.07 "	1.78 mm	Gray	44.2 mm	1.74 "	UL E42769	Flat Cable Flat Jacket	10 GOhm	Splice Free	Shielded	150 V	34	Thermoplastic Elastomer (TPE)	Copper Tinned	0.05 in	1.27 mm	100 ft	30.48 m
3M (TC) 90204/50 100	7	38 AWG	28 AWG	Blue	-20 C	105 ░C	0.07 "	1.78 mm	Gray			UL E42769	Flat Cable Flat Jacket	10 GOhm		Shielded	150 V	50	Thermoplastic Elastomer (TPE)	Copper Tinned	0.05 in	1.27 mm	100 ft	30.48 m	64.51 mm	2.54 in
3M (TC) 90204/26 100	7	38 AWG	28 AWG	Blue	-20 C	105 ░C	0.07 "	1.78 mm	Gray			UL E42769	Flat Cable Flat Jacket	10 GOhm		Shielded	150 V	26	Thermoplastic Elastomer (TPE)	Copper Tinned	0.05 in	1.27 mm			34.04 mm	1.34 "	1 ft 25 ft	7.62 m 304.8 mm
3M (TC) 90204/25 100	7	38 AWG	28 AWG	Blue	-20 C	105 ░C	0.07 "	1.78 mm	Gray			UL E42769	Flat Cable Flat Jacket	10 GOhm		Shielded	150 V	25	Thermoplastic Elastomer (TPE)	Copper Tinned	0.05 in	1.27 mm	100 ft	30.48 m					1.29 in	32.77 mm
3M (TC) 90204/64 100	7	38 AWG	28 AWG	Blue	-20 C	105 ░C	0.07 "	1.78 mm	Gray			UL E42769	Flat Cable Flat Jacket	10 GOhm		Shielded	150 V	64	Thermoplastic Elastomer (TPE)	Copper Tinned	0.05 in	1.27 mm	100 ft	30.48 m							82.3 mm	3.24 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.19
		1	$ 420.03
		5	$ 334.00
		5	$ 16.87
		10	$ 15.32
		10	$ 303.64
		25	$ 13.43
		25	$ 266.53
		50	$ 12.21
		100	$ 11.07

Description

General part information

90204 Series

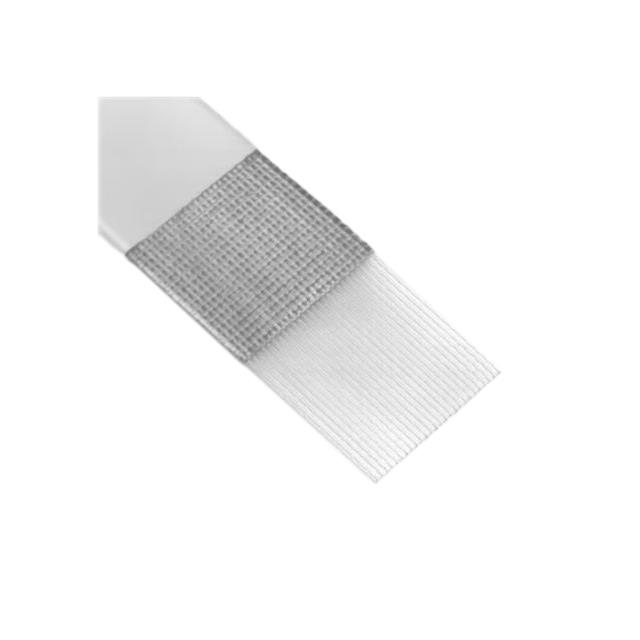

Flat Ribbon Cable Gray 26 Conductors 0.050" (1.27mm) Flat Cable, Flat Jacket 25.0' (7.62m)
