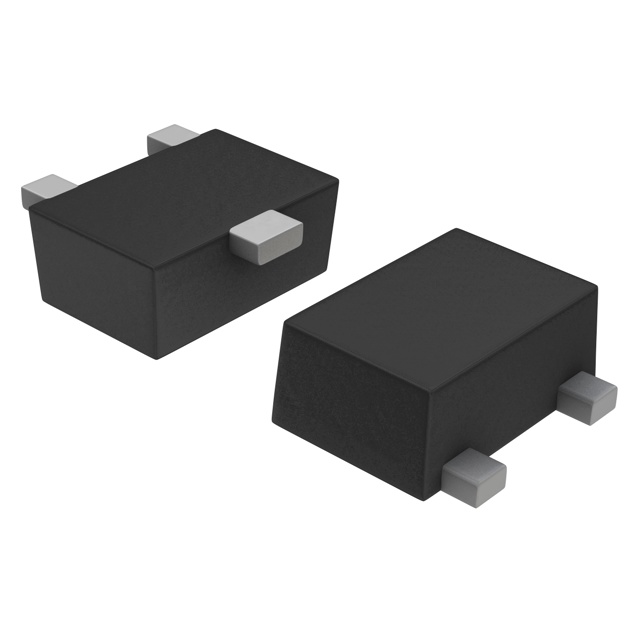

DTC123TM3T5G

Active

Sanyo

TRANS PREBIAS NPN 50V SOT723

Search across all available documentation for this part.

Active

Sanyo

TRANS PREBIAS NPN 50V SOT723

Technical Specifications

Parameters and characteristics for this part

Specification	DTC123TM3T5G

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	500 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	160 hFE
Mounting Type	Surface Mount
Package / Case	SOT-723
Power - Max [Max]	260 mW
Resistor - Base (R1)	2.2 kOhm
Supplier Device Package	SOT-723
Transistor Type	NPN - Pre-Biased
Vce Saturation (Max) @ Ib, Ic	250 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

TRANS PREBIAS NPN 50V SOT723

Part	Supplier Device Package	Vce Saturation (Max) @ Ib, Ic	Package / Case	Current - Collector Cutoff (Max) [Max]	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Resistor - Base (R1)	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Transistor Type
Sanyo DTC123TM3T5G	SOT-723	250 mV	SOT-723	500 nA	Surface Mount	160 hFE	2.2 kOhm	50 V	100 mA	260 mW	NPN - Pre-Biased

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8000	$ 0.04

General part information

Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 260 mW Surface Mount SOT-723

Technical documentation and resources

No documents available
