36946

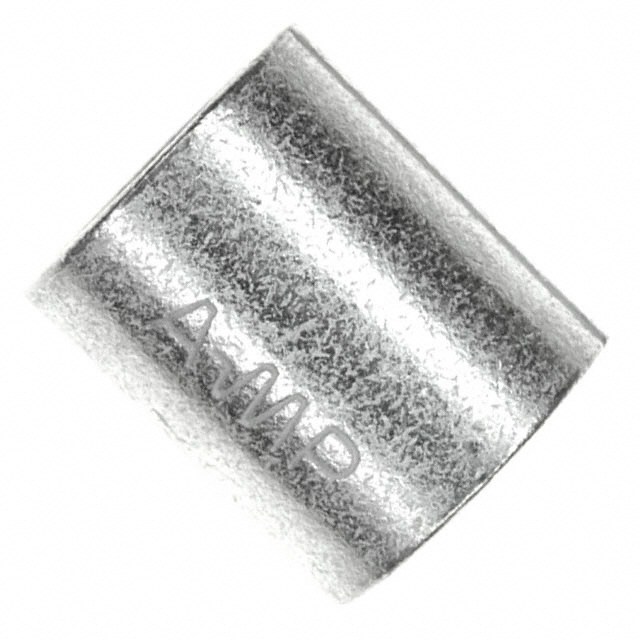

ActivePARALLEL SPLICE, SOLISTRAND SERIES, 0 AWG, 60 MM², COPPER, NON INSULATED

36946
ActivePARALLEL SPLICE, SOLISTRAND SERIES, 0 AWG, 60 MM², COPPER, NON INSULATED
Description
General part information
3694 Series
The SOLISTRAND series Terminal and Splice offer superior performance characteristics while terminating solid and stranded wire or irregular shaped conductors. Matching the terminal to the tool makes quality control easy and performance consistent. Corrosion and vibration resistance and tensile strength of these terminals and splices are well within the limits of commercial specifications. The SOLISTRAND line includes terminals, parallel and butt splices, flat rings, spades, hooks and flanged tongue terminals in various sizes. It feature dimples or serrations inside the wire barrel provide optimum tensile strength and maximum electrical contact area after crimping.
Technical Specifications
Parameters and characteristics for this part
| Specification | 36946 |
|---|---|
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Inline, Individual Openings (Parallel) |
| Termination | Crimp |
| Wire Gauge | 1/0 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
