XC9142A55D0R-G

Active

Torex Semiconductor Ltd

IC REG BOOST 5.5V 500MA 6WLP

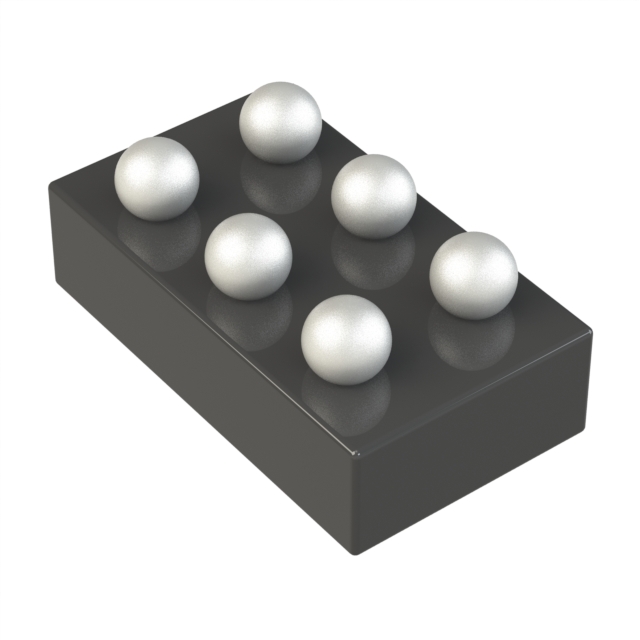

XC9142A55D0R-G

Active

Torex Semiconductor Ltd

IC REG BOOST 5.5V 500MA 6WLP

Description Specifications Series Pricing CAD Documents

Description

General part information

XC9142 Series

Boost Switching Regulator IC Positive Fixed 5.5V 1 Output 500mA 6-XFBGA, WLBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XC9142A55D0R-G

Current - Output	500 mA
Frequency - Switching	3 MHz
Function	Step-Up
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Type	Fixed
Package / Case	WLBGA, 6-XFBGA
Package Name	WLP-6-01
Synchronous Rectifier	Yes
Topology	Boost
Voltage - Input (Max)	6 V
Voltage - Input (Min)	0.65 V
Voltage - Output (Min/Fixed)	5.5 V

XC9142 Series

...

Part	Voltage - Input (Max)	Output Configuration	Package / Case	Frequency - Switching	Package Name	Topology	Synchronous Rectifier	Voltage - Output (Min/Fixed)	Function	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output	Number of Outputs	Voltage - Input (Min)	Output Type	Mounting Type	Package Width	Package Length
Torex Semiconductor Ltd XC9142E40D0R-G	6 V	Positive	6-XFBGA WLBGA	3 MHz	WLP-6-01	Boost	Yes	4 V	Step-Up	85 °C	-40 °C	500 mA	1	0.65 V	Fixed	Surface Mount
Torex Semiconductor Ltd XC9142E23DER-G	6 V	Positive	6-UFDFN Exposed Pad	3 MHz	6-USPC	Boost	Yes	2.3 V	Step-Up	85 °C	-40 °C	500 mA	1	0.65 V	Fixed	Surface Mount	2 mm	1.8 mm
Torex Semiconductor Ltd XC9142B47CMR-G	6 V	Positive		1.2 MHz	SOT-25	Boost	Yes	4.7 V	Step-Up	85 °C	-40 °C	500 mA	1	0.65 V	Fixed	Surface Mount
Torex Semiconductor Ltd XC9142D50D0R-G	6 V	Positive	6-XFBGA WLBGA	3 MHz	WLP-6-01	Boost	Yes	5 V	Step-Up	85 °C	-40 °C	500 mA	1	0.65 V	Fixed	Surface Mount
Torex Semiconductor Ltd XC9142A34D0R-G	6 V	Positive	6-XFBGA WLBGA	3 MHz	WLP-6-01	Boost	Yes	3.4 V	Step-Up	85 °C	-40 °C	500 mA	1	0.65 V	Fixed	Surface Mount
Torex Semiconductor Ltd XC9142F52DER-G	6 V	Positive	6-UFDFN Exposed Pad	3 MHz	6-USPC	Boost	Yes	5.2 V	Step-Up	85 °C	-40 °C	500 mA	1	0.65 V	Fixed	Surface Mount	2 mm	1.8 mm
Torex Semiconductor Ltd XC9142A34DER-G	6 V	Positive	6-UFDFN Exposed Pad	3 MHz	6-USPC	Boost	Yes	3.4 V	Step-Up	85 °C	-40 °C	500 mA	1	0.65 V	Fixed	Surface Mount	2 mm	1.8 mm
Torex Semiconductor Ltd XC9142A55D0R-G	6 V	Positive	6-XFBGA WLBGA	3 MHz	WLP-6-01	Boost	Yes	5.5 V	Step-Up	85 °C	-40 °C	500 mA	1	0.65 V	Fixed	Surface Mount
Torex Semiconductor Ltd XC9142F53DER-G	6 V	Positive	6-UFDFN Exposed Pad	3 MHz	6-USPC	Boost	Yes	5.3 V	Step-Up	85 °C	-40 °C	500 mA	1	0.65 V	Fixed	Surface Mount	2 mm	1.8 mm
Torex Semiconductor Ltd XC9142F22DER-G	6 V	Positive	6-UFDFN Exposed Pad	3 MHz	6-USPC	Boost	Yes	2.2 V	Step-Up	85 °C	-40 °C	500 mA	1	0.65 V	Fixed	Surface Mount	2 mm	1.8 mm
