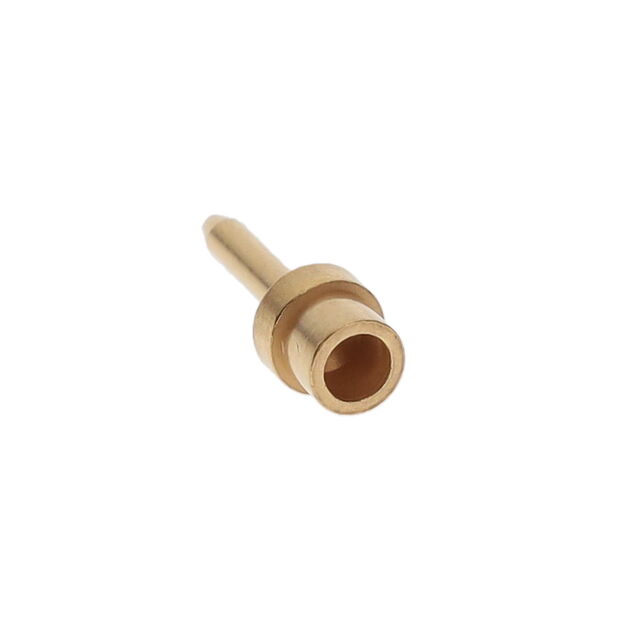

3230-1-00-34-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .040DIA GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3230-1-00-34-00-00-08-0 |
|---|---|
| Board Thickness | 0.031 in |
| Board Thickness | 0.79 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 2.77 mm |
| Flange Diameter [diameter] | 0.109 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 5.13 mm |
| Length - Above Flange [x] | 0.202 in |
| Length - Below Flange [x] | 0.065 in |
| Length - Below Flange [x] | 1.65 mm |
| Length - Overall | 7.8 mm |
| Length - Overall | 0.307 in |
| Mounting Hole Diameter [diameter] | 2.39 mm |
| Mounting Hole Diameter [diameter] | 0.094 " |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.04 | |
| 10 | $ 1.78 | |||
| 25 | $ 1.70 | |||
| 50 | $ 1.66 | |||
| 100 | $ 1.59 | |||
| 250 | $ 1.44 | |||
| 500 | $ 1.32 | |||
| 1000 | $ 1.13 | |||
| 3000 | $ 1.06 | |||
Description
General part information
3230-1 Series
PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia
