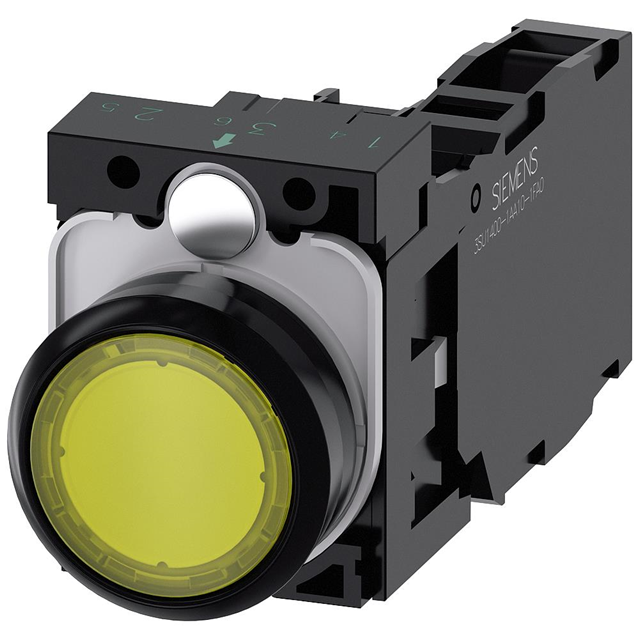

3SU11060AB301FA0

Active

Siemens

ILLUMINATED PUSHBUTTON. YELLOW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS ACT Profinet Integration WhitePaper Datasheet +1

3SU11060AB301FA0

Active

Siemens

ILLUMINATED PUSHBUTTON. YELLOW

Deep-Dive with AI

DocumentsSIRIUS ACT Profinet Integration WhitePaper Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3SU11060AB301FA0

Actuator Type	Round, Button
Circuit	DPST-NO/NC
Color - Actuator/Cap	Yellow
Current Rating (Amps)	10 A
Electrical Life	10000000 Cycles
Illumination Type, Color	LED, Yellow
Illumination Voltage (Nominal)	230 VAC
Ingress Protection	IP69K, IP67, IP66
Mechanical Life	3000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Screw Terminal
Type	Illuminated, Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

3SU1106 Series

Part	Mounting Type	Ingress Protection	Mechanical Life	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Circuit	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Voltage Rating - AC	Switch Function	Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Electrical Life	Actuator Type
Siemens 3SU11060AB403BA0	Panel Mount Front	IP66 IP67 IP69K	3000000 Cycles	500 V	10 A	Spring Terminal	SPST-NO	22.3 mm	230 VAC	500 V	Off-Mom	Illuminated Standard	Green	70 °C	-25 °C	Green LED	10000000 Cycles	Button Round
Siemens 3SU11060AB301BA0	Panel Mount Front	IP66 IP67 IP69K	3000000 Cycles	500 V	10 A	Screw Terminal	SPST-NO	22.3 mm	230 VAC	500 V	Off-Mom	Illuminated Standard	Yellow	70 °C	-25 °C	LED Yellow	10000000 Cycles	Button Round
Siemens 3SU11060AB401BA0	Panel Mount Front	IP66 IP67 IP69K	3000000 Cycles	500 V	10 A	Screw Terminal	SPST-NO	22.3 mm	230 VAC	500 V	Off-Mom	Illuminated Standard	Green	70 °C	-25 °C	Green LED	10000000 Cycles	Button Round
Siemens 3SU11060AB603FA0	Panel Mount Front	IP66 IP67 IP69K	3000000 Cycles	500 V	10 A	Spring Terminal	DPST-NO/NC	22.3 mm	230 VAC	500 V	Off-Mom On-Mom	Illuminated Standard	White	70 °C	-25 °C	LED White	10000000 Cycles	Button Round
Siemens 3SU11060AB301FA0	Panel Mount Front	IP66 IP67 IP69K	3000000 Cycles	500 V	10 A	Screw Terminal	DPST-NO/NC	22.3 mm	230 VAC	500 V	Off-Mom On-Mom	Illuminated Standard	Yellow	70 °C	-25 °C	LED Yellow	10000000 Cycles	Button Round
Siemens 3SU11060AB501BA0	Panel Mount Front	IP66 IP67 IP69K	3000000 Cycles	500 V	10 A	Screw Terminal	SPST-NO	22.3 mm	230 VAC	500 V	Off-Mom	Illuminated Standard	Blue	70 °C	-25 °C	Blue LED	10000000 Cycles	Button Round
Siemens 3SU11060AB601FA0	Panel Mount Front	IP66 IP67 IP69K	3000000 Cycles	500 V	10 A	Screw Terminal	DPST-NO/NC	22.3 mm	230 VAC	500 V	Off-Mom On-Mom	Illuminated Standard	White	70 °C	-25 °C	LED White	10000000 Cycles	Button Round
Siemens 3SU11060AB401FA0	Panel Mount Front	IP66 IP67 IP69K	3000000 Cycles	500 V	10 A	Screw Terminal	DPST-NO/NC	22.3 mm	230 VAC	500 V	Off-Mom On-Mom	Illuminated Standard	Green	70 °C	-25 °C	Green LED	10000000 Cycles	Button Round
Siemens 3SU11060AB603BA0	Panel Mount Front	IP66 IP67 IP69K	3000000 Cycles	500 V	10 A	Spring Terminal	SPST-NO	22.3 mm	230 VAC	500 V	Off-Mom	Illuminated Standard	White	70 °C	-25 °C	LED White	10000000 Cycles	Button Round
Siemens 3SU11060AB201FA0	Panel Mount Front	IP66 IP67 IP69K	3000000 Cycles	500 V	10 A	Screw Terminal	DPST-NO/NC	22.3 mm	230 VAC	500 V	Off-Mom On-Mom	Illuminated Standard	Red	70 °C	-25 °C	LED Red	10000000 Cycles	Button Round

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 97.52
