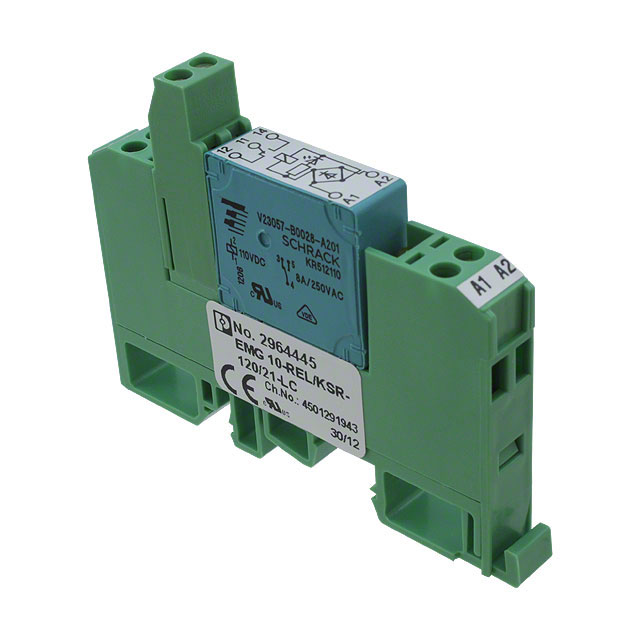

2964445

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 120V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 120VAC/DC Coil DIN Rail

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2964445	29644 Series

Approval Agency	UL, EAC, cULus	UL, EAC, cULus
Coil Current	5 mA	5 mA
Coil Resistance	24 kOhms	24 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	120 VAC, 120 VDC	120 VAC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C), SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)	Silver Palladium (AgPd), Gold (Au), Silver Nickel (AgNi)
Contact Rating (Current)	6 A	0.5 - 6 mA
Features	Lighted Indicator, Varistor, Socket Included	Lighted Indicator, Varistor, Socket Included
Load - Max Switching	140 W, 1500 VA	140 - 1500 W
Mounting Type	DIN Rail	DIN Rail
Operate Time	7 ms	7 ms
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-20 C	-20 C
Relay Type	General Purpose	General Purpose
Release Time	11 ms	11 ms
Switching Voltage	250 VAC, 250 VDC	30 - 250 VDC
Termination Style	Screw Terminal	Screw Terminal

RELAY GEN PURPOSE SPDT 5MA 120V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Coil Voltage	Termination Style	Contact Rating (Current)	Coil Resistance	Relay Type	Release Time	Coil Type	Features	Coil Current	Mounting Type	Operate Time	Contact Form	Contact Material	Load - Max Switching	Approval Agency
Phoenix Contact 2964458	-20 C	40 °C	125 VAC, 150 VDC	120 VAC, 120 VDC	Screw Terminal	5 mA	24 kOhms	General Purpose	11 ms	Non Latching	Lighted Indicator	5 mA	DIN Rail	7 ms	SPDT (1 Form C)	Gold (Au), Silver Palladium (AgPd)
Phoenix Contact 2964445	-20 C	40 °C	250 VAC, 250 VDC	120 VAC, 120 VDC	Screw Terminal	6 A	24 kOhms	General Purpose	11 ms	Non Latching	Lighted Indicator, Socket Included, Varistor	5 mA	DIN Rail	7 ms	SPDT (1 Form C)	Silver Nickel (AgNi)	140 W, 1500 VA	cULus, EAC, UL
Phoenix Contact 2964432	-20 C	40 °C	250 VAC, 250 VDC	120 VAC, 120 VDC	Screw Terminal	6 A	24 kOhms	General Purpose	11 ms	Non Latching	Lighted Indicator, Socket Included, Varistor	5 mA	DIN Rail	7 ms	SPST-NO (1 Form A)	Silver Nickel (AgNi)	140 W, 1500 VA	cULus, EAC, UL
Phoenix Contact 2964461	-20 C	40 °C	30 VAC, 36 VDC	120 VAC, 120 VDC	Screw Terminal	0.5 A	24 kOhms	General Purpose	11 ms	Non Latching	Socket Included, Varistor	5 mA	DIN Rail	7 ms	SPST-NO (1 Form A)	Gold (Au), Silver Palladium (AgPd)
