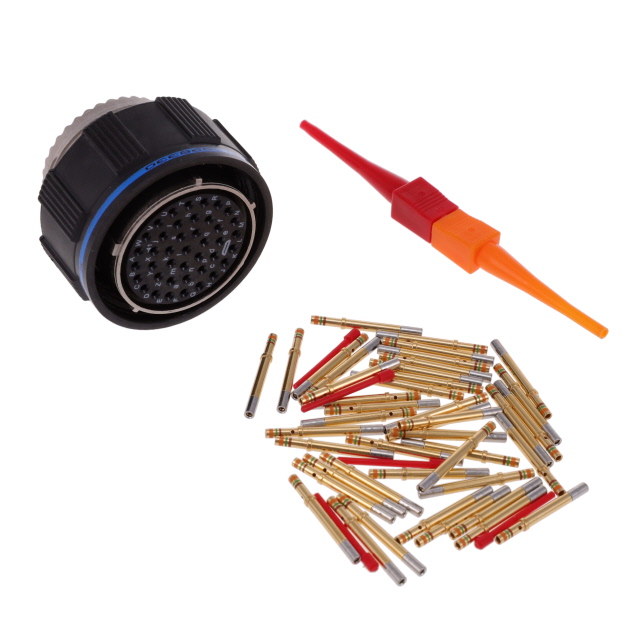

D38999/26MG41SN
ActiveAmphenol Aerospace Operations
CONN PLUG FMALE 41POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/26MG41SN
ActiveAmphenol Aerospace Operations
CONN PLUG FMALE 41POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/26MG41SN |
|---|---|
| Applications | Aviation, Aerospace, Marine, Military |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Features | Coupling Nut |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 41 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Composite |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Electroless Nickel |
| Shell Material | Composite |
| Shell Size - Insert [Max] | 41 |
| Shell Size - Insert [Min] | 21 |
| Shell Size, MIL | G |
| Shielding | Shielded |
| Termination | Crimp |
D38999/26MG Series
| Part | Note | Grade | Shielding | Ingress Protection | Housing Color | Shell Size, MIL | Type | Orientation | Connector Type | Contact Type | Contact Shape | Number of Positions | Mounting Type | Features | Qualification | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Contact Size | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Contact Material | Contact Finish - Mating | Termination | Applications | Shell Size - Insert | Color | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Size | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Contact Size | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | Contacts Not Included | Military | Shielded | Environment Resistant | Silver | G | For Female Sockets | B | Plug Housing | Crimp | Circular | 4 | Free Hanging (In-Line) | Coupling Nut Self Locking | MIL-DTL-38999 Series III | 75 | 21 | 8 Twinax | Electroless Nickel | -65 ░C | 200 °C | Composite | ||||||||||||||
Amphenol Aerospace Operations | Military | Shielded | Environment Resistant | G | B | Male Pins Plug | 11 | Free Hanging (In-Line) | Coupling Nut Self Locking | MIL-DTL-38999 Series III | Electroless Nickel | -65 ░C | 200 °C | Composite | Copper Alloy | Gold | Crimp | Aviation Marine Military | 21-11 | Silver | Composite | 2.54 çm | 100 çin | |||||||||||||
Amphenol Aerospace Operations | Contacts Not Included | Military | Shielded | Environment Resistant | Silver | G | For Male Pins | N | Plug Housing | Crimp | Circular | 11 | Free Hanging (In-Line) | Coupling Nut Self Locking | MIL-DTL-38999 Series III | Electroless Nickel | -65 ░C | 200 °C | Composite | 21-11 | 12 | |||||||||||||||
Amphenol Aerospace Operations | Contacts Not Included | Military | Shielded | Environment Resistant | Silver | G | For Male Pins | B | Plug Housing | Crimp | Circular | 79 | Free Hanging (In-Line) | Coupling Nut Self Locking | MIL-DTL-38999 Series III | 22D | Electroless Nickel | -65 ░C | 200 °C | Composite | 21 | 35 | ||||||||||||||
Amphenol Aerospace Operations | Contacts Not Included | Military | Shielded | Environment Resistant | Silver | G | For Male Pins | N | Plug Housing | Crimp | Circular | 39 | Free Hanging (In-Line) | MIL-DTL-38999 Series III | Electroless Nickel | -65 ░C | 200 °C | Composite | 16 20 | 21 | 39 | 2 37 | ||||||||||||||
Amphenol Aerospace Operations | Contacts Not Included | Military | Shielded | Environment Resistant | Silver | G | For Male Pins | B | Plug Housing | Crimp | Circular | Free Hanging (In-Line) | Coupling Nut Self Locking | MIL-DTL-38999 Series III | Electroless Nickel | -65 ░C | 200 °C | Composite | 21-16 | 16 | 16 | |||||||||||||||
Amphenol Aerospace Operations | Military | Shielded | Environment Resistant | G | N | Female Sockets Plug | 41 | Free Hanging (In-Line) | Coupling Nut | MIL-DTL-38999 Series III | Electroless Nickel | -65 ░C | 200 °C | Composite | Copper Alloy | Gold | Crimp | Aerospace Aviation Marine Military | Silver | Composite | 1.27 µm | 50 µin | 21 | 41 | ||||||||||||
Amphenol Aerospace Operations | Contacts Not Included | Military | Shielded | Environment Resistant | Silver | G | For Female Sockets | N | Plug Housing | Crimp | Circular | 4 | Free Hanging (In-Line) | MIL-DTL-38999 Series III | 75 | 21 | 8 Coax | Electroless Nickel | -65 ░C | 200 °C | Composite | |||||||||||||||
Amphenol Aerospace Operations | Contacts Not Included | Military | Shielded | Environment Resistant | Silver | G | For Male Pins | B | Plug Housing | Crimp | Circular | 39 | Free Hanging (In-Line) | Coupling Nut Self Locking | MIL-DTL-38999 Series III | Electroless Nickel | -65 ░C | 200 °C | Composite | 16 20 | 21 | 39 | 2 37 | |||||||||||||
Amphenol Aerospace Operations | Military | Shielded | Environment Resistant | G | A | Male Pins Plug | 79 | Free Hanging (In-Line) | Coupling Nut | MIL-DTL-38999 Series III | Electroless Nickel | -65 ░C | 200 °C | Composite | Copper Alloy | Gold | Crimp | Aerospace Aviation Military | Silver | Composite | 2.54 çm | 100 çin | 21 | 35 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 112.82 | |
| 10 | $ 108.47 | |||
| 25 | $ 104.46 | |||
| 50 | $ 97.25 | |||
| 100 | $ 90.99 | |||
| 250 | $ 84.19 | |||
| 500 | $ 80.59 | |||
| 1000 | $ 77.27 | |||
| Bulk | 1 | $ 159.91 | ||
| 1 | $ 107.20 | |||
| 10 | $ 92.91 | |||
| 10 | $ 145.34 | |||
| 25 | $ 81.98 | |||
| 50 | $ 73.35 | |||
| 100 | $ 64.32 | |||
Description
General part information
D38999/26MG Series
41 Position Circular Connector Plug, Female Sockets Crimp
Documents
Technical documentation and resources
