6-103672-5
ActiveTE Connectivity AMP Connectors

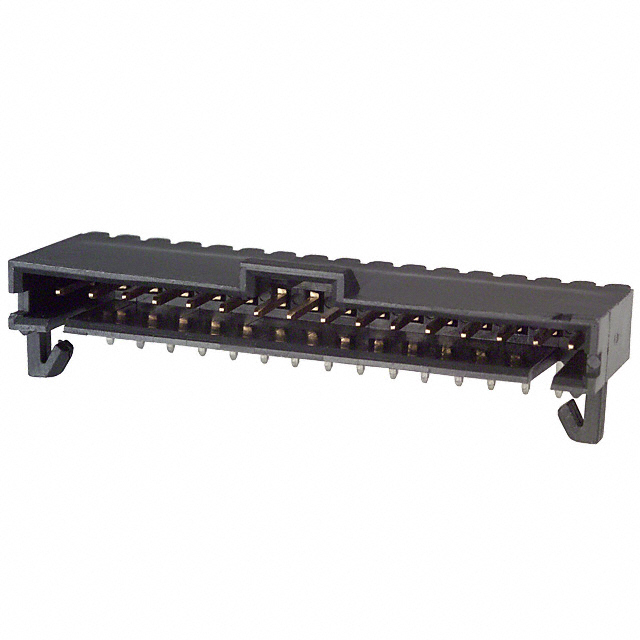

CONN HEADER R/A 16POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
6-103672-5
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 16POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6-103672-5 | 103672 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Tin-Lead |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post | 0.13 in | 0.13 in |
| Contact Length - Post | 3.3 mm | 3.3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Board Lock, Keying Slot | Board Lock, Keying Slot |
| Insulation Color | Black | Black |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 2 - 20 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.62 | |
| 12 | $ 2.96 | |||
| 108 | $ 2.47 | |||
| 504 | $ 2.18 | |||
| 1008 | $ 2.06 | |||
| 5004 | $ 1.83 | |||
103672 Series
CONN HEADER R/A 12POS 2.54MM
| Part | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Insulation Material | Contact Finish - Post | Material Flammability Rating | Features | Mounting Type | Current Rating (Amps) | Contact Length - Mating [x] | Contact Length - Mating | Applications | Contact Length - Post | Contact Length - Post | Connector Type | Pitch - Mating | Pitch - Mating | Termination | Style | Number of Positions Loaded | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Contact Material | Contact Shape | Contact Type | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 6-103672-1 | 1 | 2.54 µm | 100 µin | 12 | -65 ░C | 105 ░C | Black | Thermoplastic | Tin | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | ||
TE Connectivity AMP Connectors 103672-4 | 1 | 2.54 µm | 100 µin | -65 ░C | 105 ░C | Black | Thermoplastic | Tin-Lead | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | Tin-Lead | ||
TE Connectivity AMP Connectors 6-103672-9 | 1 | 2.54 µm | 100 µin | 20 | -65 ░C | 105 ░C | Black | Thermoplastic | Tin | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | ||
TE Connectivity AMP Connectors 5-103672-9 | 1 | 2.54 µm | 100 µin | 10 | -65 ░C | 105 ░C | Black | Thermoplastic | Tin | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | ||
TE Connectivity AMP Connectors 5-103672-5 | 1 | 2.54 µm | 100 µin | 6 | -65 ░C | 105 ░C | Black | Thermoplastic | Tin | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | ||
TE Connectivity AMP Connectors 103672-9 | 1 | 2.54 µm | 100 µin | 10 | -65 ░C | 105 ░C | Black | Thermoplastic | Tin-Lead | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | Tin-Lead | |
TE Connectivity AMP Connectors 5-103672-4 | 1 | 2.54 µm | 100 µin | -65 ░C | 105 ░C | Black | Thermoplastic | Tin | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | |||
TE Connectivity AMP Connectors 103672-1 | 1 | 2.54 µm | 100 µin | 2 | -65 ░C | 105 ░C | Black | Thermoplastic | Tin-Lead | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | Tin-Lead | |
TE Connectivity AMP Connectors 5-103672-3 | 1 | 2.54 µm | 100 µin | 4 | -65 ░C | 105 ░C | Black | Thermoplastic | Tin | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | ||
TE Connectivity AMP Connectors 1-103672-5 | 1 | 2.54 µm | 100 µin | -65 ░C | 105 ░C | Black | Thermoplastic | Tin-Lead | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | Tin-Lead | 16 | |
TE Connectivity AMP Connectors 5-103672-7 | 1 | 2.54 µm | 100 µin | 8 | -65 ░C | 105 ░C | Black | Thermoplastic | Tin | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | ||
TE Connectivity AMP Connectors 2-103672-7 | 1 | 2.54 µm | 100 µin | -65 ░C | 105 ░C | Black | Thermoplastic | Tin | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | |||
TE Connectivity AMP Connectors 6-103672-5 | 1 | 2.54 µm | 100 µin | -65 ░C | 105 ░C | Black | Thermoplastic | Tin | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | 16 | ||
TE Connectivity AMP Connectors 1-103672-1 | 1 | 2.54 µm | 100 µin | 12 | -65 ░C | 105 ░C | Black | Thermoplastic | Tin-Lead | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | Tin-Lead | |
TE Connectivity AMP Connectors 2-103672-9 | 1 | 2.54 µm | 100 µin | 6 | -65 ░C | 105 ░C | Black | Thermoplastic | Tin | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin | ||
TE Connectivity AMP Connectors 2-103672-6 | 1 | 2.54 µm | 100 µin | 4 | -65 ░C | 105 ░C | Black | Thermoplastic | Tin | UL94 V-0 | Board Lock, Keying Slot | Through Hole, Right Angle | 3 A | 0.23 in | 5.84 mm | Automotive, General Purpose, Medical, Telecommunications | 0.13 in | 3.3 mm | Header | 0.1 in | 2.54 mm | Solder | Board to Board, Cable | All | Shrouded - 4 Wall | 2.54 çm | 100 çin | Latch Holder | Brass | Square | Male Pin |
Description
General part information
103672 Series
Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
