HS2C4M20C

Active

Switchcraft Inc.

CONN PLUG MALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	HS2C4M20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 HF-1
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

CONN PLUG MALE 4POS GOLD CRIMP

Part	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Fastening Type	Contact Material	Color	Termination	Contact Finish - Mating	Shell Material	Shielding	Ingress Protection	Mounting Type	Voltage Rating	Primary Material	Insert Material	Orientation	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Material Flammability Rating	Shell Finish	Applications
Switchcraft Inc. HS2C4M20C	5.49 mm	4.57 mm	0.18 in	0.216 in	Push-Pull	Copper Alloy	Silver	Crimp, Solder Cup	Gold	Copper Alloy	Shielded	IP66, IP67, IP68	Free Hanging (In-Line)	125 VAC	Metal	Liquid Crystal Polymer (LCP)	Keyed	Male Pins, Plug	135 °C	-40 °C	4	UL94 HF-1	Electroless Nickel	Agriculture, Audio, General, Medical, Testing Equipment & Measurement

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

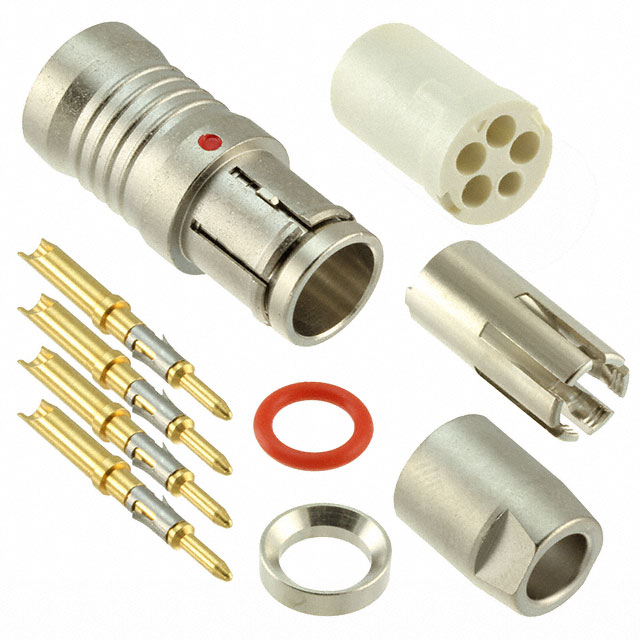

4 Position Circular Connector Plug, Male Pins Crimp or Solder Cup
