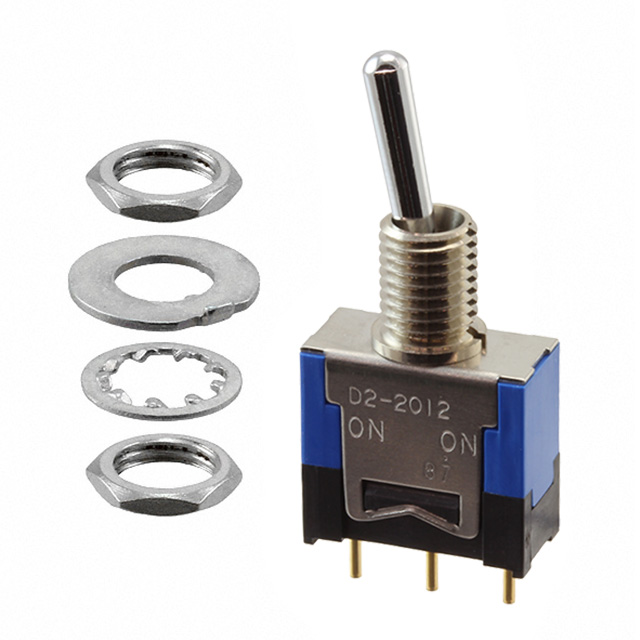

SWITCH TOGGLE ON NONE ON SPDT BAT LEVER PC PINS 0.1A 48VAC 48VDC 0.4VA PC MOUNT WITH THREADS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D22012P

Active

NKK Switches

SWITCH TOGGLE ON NONE ON SPDT BAT LEVER PC PINS 0.1A 48VAC 48VDC 0.4VA PC MOUNT WITH THREADS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D22012P

Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M6 x 0.75
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	48 V
Voltage Rating - DC	48 V

D22012 Series

Part	Voltage Rating - DC	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Actuator Length [x]	Circuit	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Bushing Thread	Termination Style	Illumination	Actuator Material	Actuator Type	Current Rating (Amps)	Switch Function	Electrical Life	Mounting Type
NKK Switches D22012LP	48 V	-10 °C	158 °F	19.4 mm	SPDT	48 V	6.5 mm	M6 x 0.75	PC Pin	Non-Illuminated	Brass Chrome Plated	Locking Lever	0.4 VA	On-On	50000 Cycles
NKK Switches D22012H	48 V	-10 °C	158 °F		SPDT	48 V		Unthreaded	PC Pin	Non-Illuminated	Brass Chrome Plated	Standard Round	0.4 VA	On-On	50000 Cycles	Through Hole Right Angle
NKK Switches D22012P	48 V	-10 °C	158 °F		SPDT	48 V	6.5 mm	M6 x 0.75	PC Pin	Non-Illuminated	Brass Chrome Plated	Standard Round	0.4 VA	On-On	50000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 5.79
		10	$ 4.73
Digikey	Bulk	1	$ 5.78
		10	$ 5.21
		25	$ 4.95
		50	$ 4.74
		100	$ 4.59
		250	$ 4.35
		500	$ 4.01
		1000	$ 3.83
Newark	Each	1	$ 7.27
		10	$ 6.17
		25	$ 5.60

Description

General part information

D22012 Series

The D22012P is a single-pole double-throw (SPDT) PCB-mount miniature Toggle Switch with gold-plated brass straight PC terminals and ON-NONE-ON function. The series D2 toggle switch has brass with chrome plating toggle/lever, UL94V-0 polybutylene terephthalate (PBT) housing and brass with nickel plating bushing. Maximized voltage capability of 48V allows use in medium source applications and increases operating life.
