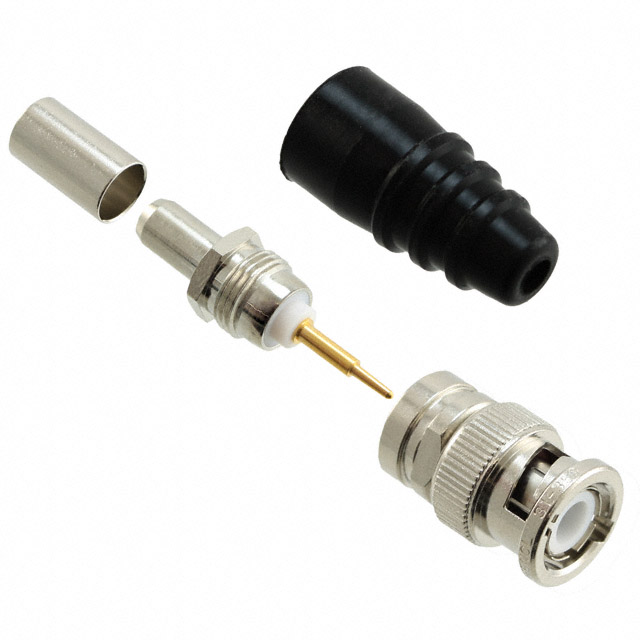

031-359

Active

AMPHENOL RF

CONN BNC PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN BNC PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-359	031-35 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209, 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, RG-55
Cable Group	-	142 - 400
Center Contact Material	Brass	Brass, Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	-	1 Ferrule, 1 Contact, 1 Strain Relief, 1 Connector
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

CONN BNC PLUG STR 50 OHM SOLDER

Part	Contact Termination	Housing Color	Cable Group	Connector Type	Center Contact Plating	Mating Cycles	Insertion Loss	Number of Ports	Impedance	Frequency - Max [Max]	Body Finish	Body Material	Mounting Type	Voltage Rating	Dielectric Material	Shield Termination	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Fastening Type	Cable Group	Includes
AMPHENOL RF 031-359	Solder	Silver	140, 210, 59B, 62, 8263, 8279, 9209, Belden 8241, RG-59	Male Pin, Plug	Gold	500	0.2 dB	1	50 Ohms	4 GHz	Nickel	Brass	Free Hanging (In-Line)	500 V	Polytetrafluoroethylene (PTFE)	Crimp	Brass	-65 ░C	165 °C	BNC	Bayonet Lock
AMPHENOL RF 031-351	Solder	Silver	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Male Pin, Plug	Gold	500	0.2 dB	1	50 Ohms	4 GHz	Nickel	Brass	Free Hanging (In-Line)	500 V	Polytetrafluoroethylene (PTFE)	Crimp	Phosphor Bronze	-65 ░C	165 °C	BNC	Bayonet Lock
AMPHENOL RF 031-350	Crimp	Silver	RG-55	Male Pin, Plug	Gold	500	0.2 dB	1	50 Ohms	4 GHz	Nickel	Brass	Free Hanging (In-Line)	500 V	Polytetrafluoroethylene (PTFE)	Crimp	Brass	-65 ░C	165 °C	BNC	Bayonet Lock	142, 223, 400	1 Connector, 1 Contact, 1 Ferrule, 1 Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 29.70

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
