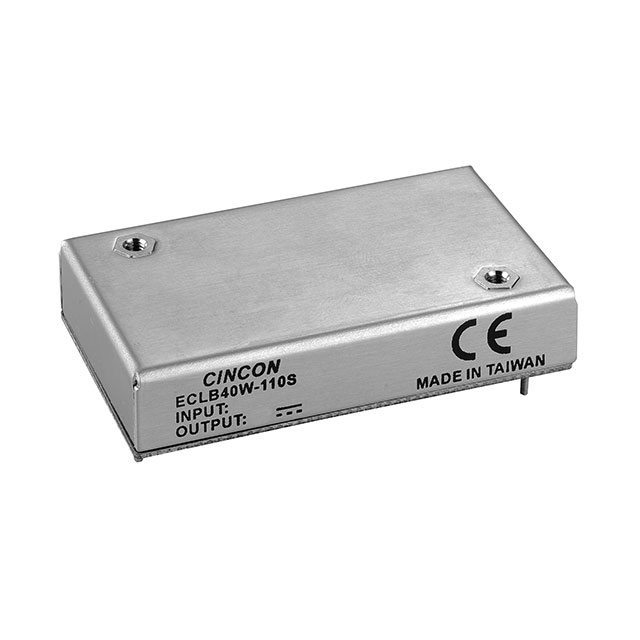

ECLB40W-110D15N

Active

Cincon Electronics Co. LTD

DC DC CONVERTER +/-15V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECLB40W-110D15N

Active

Cincon Electronics Co. LTD

DC DC CONVERTER +/-15V 40W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECLB40W-110D15N

Applications	Railway, ITE (Commercial)
Approval Agency	CE, cURus
Control Features	Active Low, Enable
Current - Output (Max)	1.333 A
Current - Output (Max)	1.333 A
Efficiency	88.5 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	40 W
Size / Dimension [x]	2.05 "
Size / Dimension [x]	52 mm
Size / Dimension [y]	1.2 "
Size / Dimension [y]	30.5 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	60950-1
Standard Number	50155
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	43 V
Voltage - Isolation	3000 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

ECLB40 Series

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Features	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Output 2	Number of Outputs	Voltage - Input (Max) [Max]	Efficiency	Control Features	Type	Current - Output (Max)	Current - Output (Max)	Voltage - Output 1	Applications	Standard Number	Standard Number	Current - Output (Max)	Current - Output (Max) [Max]
Cincon Electronics Co. LTD ECLB40W-110D24N	Through Hole	85 °C	-40 °C	CE cURus	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	2.05 "	0.4 "	1.2 "	52 mm	30.5 mm	10.2 mm	6-DIP Module	43 V	40 W	-24 V	2	160 V	89 %	Active Low Enable	Isolated Module	833 mA	833 mA	24 V	ITE (Commercial) Railway	60950-1	50155
Cincon Electronics Co. LTD ECLB40W-48D15	Through Hole	85 °C	-40 °C	CE	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	2.05 "	0.4 "	1.2 "	52 mm	30.5 mm	10.2 mm	6-DIP Module	18 V	40 W	-15 V	2	75 V	90 %	Active High Enable	Isolated Module		1.333 A	15 V	ITE (Commercial)		60950-1	1.333 A
Cincon Electronics Co. LTD ECLB40W-48S15	Through Hole	85 °C	-40 °C	CE	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	2.05 "	0.4 "	1.2 "	52 mm	30.5 mm	10.2 mm	6-DIP Module	18 V	40 W		1	75 V	90.5 %	Active High Enable	Isolated Module			15 V	ITE (Commercial)		60950-1		2.666 A
Cincon Electronics Co. LTD ECLB40W-110S15N	Through Hole	85 °C	-40 °C	CE cURus	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	2.05 "	0.4 "	1.2 "	52 mm	30.5 mm	10.2 mm	6-DIP Module	43 V	40 W		1	160 V	91 %	Active Low Enable	Isolated Module			15 V	ITE (Commercial) Railway	60950-1	50155		2.666 A
Cincon Electronics Co. LTD ECLB40W-110S05	Through Hole	85 °C	-40 °C	CE cURus	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	2.05 "	0.4 "	1.2 "	52 mm	30.5 mm	10.2 mm	6-DIP Module	43 V	40 W		1	160 V	88.5 %	Active High Enable	Isolated Module			5 V	ITE (Commercial) Railway	60950-1	50155		8 A
Cincon Electronics Co. LTD ECLB40W-48S33	Through Hole	85 °C	-40 °C	CE	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	2.05 "	0.4 "	1.2 "	52 mm	30.5 mm	10.2 mm	6-DIP Module	18 V	33 W		1	75 V	90 %	Active High Enable	Isolated Module			3.3 V	ITE (Commercial)		60950-1		10 A
Cincon Electronics Co. LTD ECLB40W-24S15	Through Hole	85 °C	-40 °C	CE	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	2.05 "	0.4 "	1.2 "	52 mm	30.5 mm	10.2 mm	6-DIP Module	9 V	40 W		1	36 V	90.5 %	Active High Enable	Isolated Module			15 V	ITE (Commercial)		60950-1		2.666 A
Cincon Electronics Co. LTD ECLB40W-48S12	Through Hole	85 °C	-40 °C	CE	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	2.05 "	0.4 "	1.2 "	52 mm	30.5 mm	10.2 mm	6-DIP Module	18 V	40 W		1	75 V	90.5 %	Active High Enable	Isolated Module			12 V	ITE (Commercial)		60950-1		3.333 A
Cincon Electronics Co. LTD ECLB40W-110D15N	Through Hole	85 °C	-40 °C	CE cURus	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	2.05 "	0.4 "	1.2 "	52 mm	30.5 mm	10.2 mm	6-DIP Module	43 V	40 W	-15 V	2	160 V	88.5 %	Active Low Enable	Isolated Module		1.333 A	15 V	ITE (Commercial) Railway	60950-1	50155	1.333 A
Cincon Electronics Co. LTD ECLB40W-110S05N	Through Hole	85 °C	-40 °C	CE cURus	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	2.05 "	0.4 "	1.2 "	52 mm	30.5 mm	10.2 mm	6-DIP Module	43 V	40 W		1	160 V	88.5 %	Active Low Enable	Isolated Module			5 V	ITE (Commercial) Railway	60950-1	50155		8 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 60.00

Description

General part information

ECLB40 Series

Isolated Module DC DC Converter 2 Output 15V -15V 1.333A, 1.333A 43V - 160V Input
