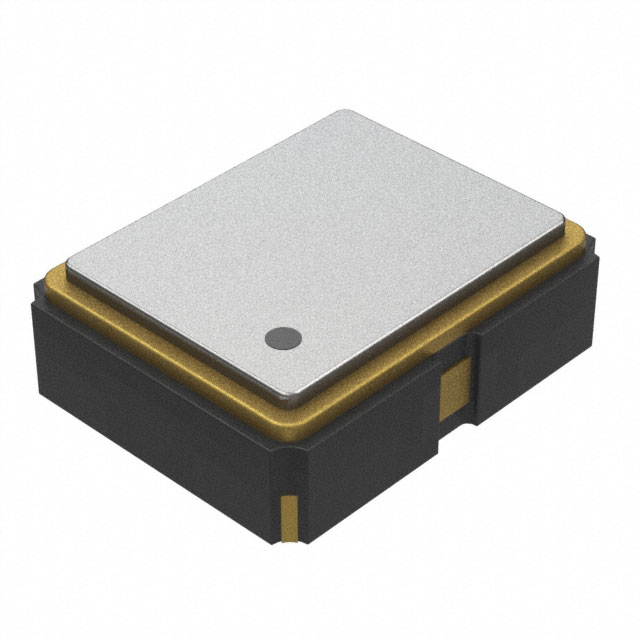

FJ0200004

Active

Diodes Inc

CMOS OUTPUT CLOCK OSCILLATOR, 2MHZ NOM, SMD, 4 PIN

Search across all available documentation for this part.

Active

Diodes Inc

CMOS OUTPUT CLOCK OSCILLATOR, 2MHZ NOM, SMD, 4 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	FJ0200004

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	10 ÁA
Current - Supply (Max) [Max]	8 mA
Frequency	2 MHz
Function	Enable/Disable
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	CMOS
Package / Case	4-SMD, No Lead
Size / Dimension [x]	0.098 "
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Type	XO (Standard)
Voltage - Supply	2.5 V

Part	Base Resonator	Mounting Type	Voltage - Supply	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Supply (Max) [Max]	Function	Frequency	Output	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Current - Supply (Disable) (Max) [Max]
Diodes Inc FJ0200004	Crystal	Surface Mount	2.5 V	4-SMD No Lead	85 °C	-40 °C	0.039 "	1 mm	8 mA	Enable/Disable	2 MHz	CMOS	0.098 "	2 mm	2.5 mm	0.079 in	XO (Standard)	10 ÁA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.85

General part information

2 MHz XO (Standard) CMOS Oscillator 2.5V Enable/Disable 4-SMD, No Lead
