TDA7297SA

Obsolete

STMicroelectronics

IC AMP AB STEREO 10W 15CLIPWATT

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC AMP AB STEREO 10W 15CLIPWATT

Technical Specifications

Parameters and characteristics for this part

Specification	TDA7297SA

Features	Short-Circuit and Thermal Protection, Mute, Standby
Max Output Power x Channels @ Load	10 W, 2 channels
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Type	2-Channel (Stereo)

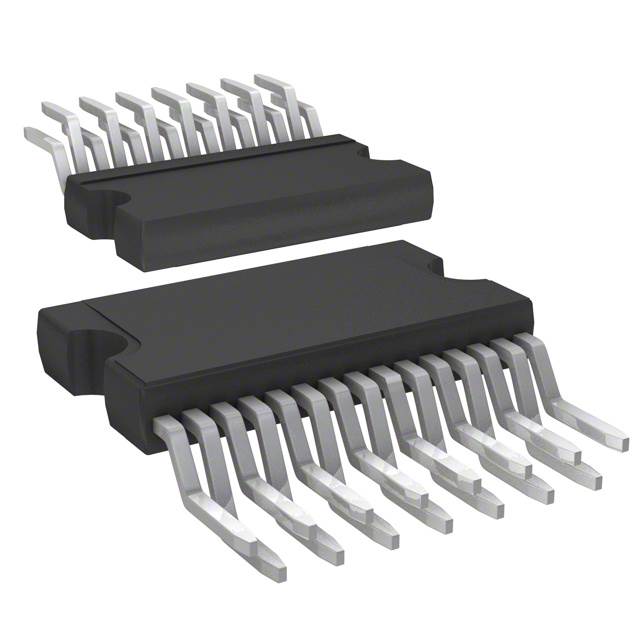

Package / Case	Clipwatt-15 (Vertical, Bent and Staggered Leads)
Supplier Device Package	15-Clipwatt
Type	Class AB
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	6.5 VDC

Part	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Max Output Power x Channels @ Load	Type
STMicroelectronics TDA7297SA	2-Channel (Stereo)	18 V	6.5 VDC	Mute Short-Circuit and Thermal Protection Standby	Clipwatt-15 (Vertical Bent and Staggered Leads)	Through Hole	70 °C	0 °C	15-Clipwatt	2 channels 10 W	Class AB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 2-Channel (Stereo) Class AB 15-Clipwatt
