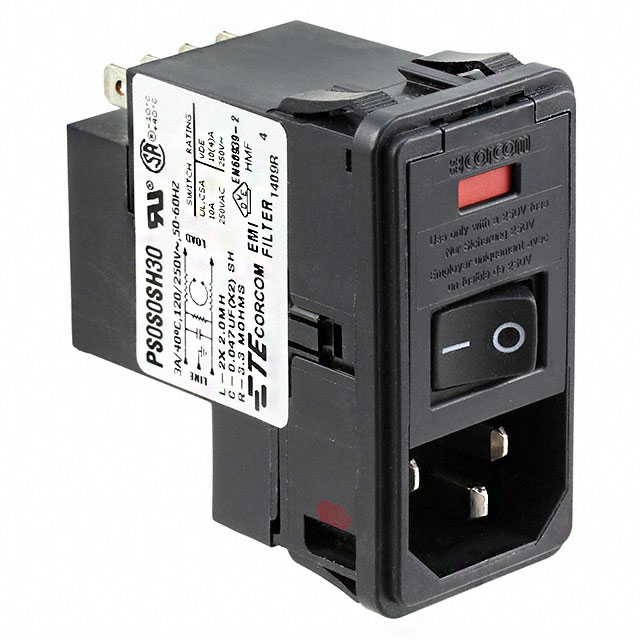

PS0S0SH30

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	PS0S0SH30

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	3 A
Current Rating - Filter	3 A
Features	Conversion Clip
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Fuse Holder
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size
Panel Thickness [Max]	2.9 mm
Panel Thickness [Max]	0.114 in
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "
Switch Features	Switch On-Off
Termination	0.187 "
Termination	4.7 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Filter Type	Current Rating - Filter	Approval Agency	Termination	Termination	Termination	Accomodates a Fuse	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Switch Features	Connector Type	Fuse Holder, Drawer	Mounting Type	Features	Voltage Rating - Appliance Inlet	Connector Style	Current Rating - Appliance Inlet	Panel Cutout Dimensions
TE Connectivity Corcom Filters PS0S0SH30	Filtered (EMI, RFI) - Commercial, Medical	3 A	CSA, UL, VDE	0.187 "	4.7 mm	Quick Connect		2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	Receptacle, Male Blades - Module	Fuse Holder	Panel Mount, Snap-In	Conversion Clip	120 VAC	IEC 320-C14	3 A	Variable Size

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
