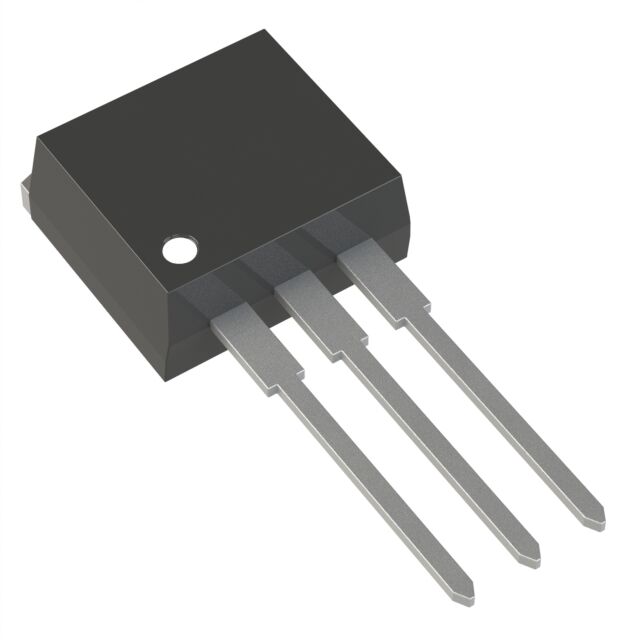

CDBKA20120L-HF

Active

Comchip Technology

DIODE ARR SCHOTT 120V 10A TO-262

Search across all available documentation for this part.

Active

Comchip Technology

DIODE ARR SCHOTT 120V 10A TO-262

Technical Specifications

Parameters and characteristics for this part

Specification	CDBKA20120L-HF

Current - Average Rectified (Io) (per Diode)	10 A
Current - Reverse Leakage @ Vr	50 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-262AA, TO-262-3 Long Leads, I2PAK
Speed	200 mA, 500 ns
Supplier Device Package	TO-262
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	120 V
Voltage - Forward (Vf) (Max) @ If	800 mV

DIODE ARR SCHOTT 120V 10A TO-262

Part	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Package / Case	Technology	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Diode Configuration	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr
Comchip Technology CDBKA20120L-HF	Through Hole	120 V	200 mA, 500 ns	I2PAK, TO-262-3 Long Leads, TO-262AA	Schottky	TO-262	150 °C	-55 °C	10 A	1 Pair Common Cathode	800 mV	50 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 120 V 10A Through Hole TO-262-3 Long Leads, I2PAK, TO-262AA
