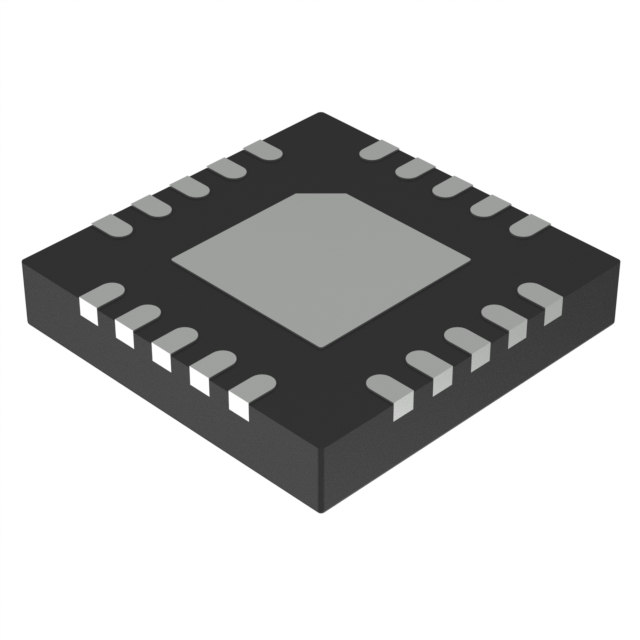

AP43776ZDZ20-13

Active

Diodes Inc

DUAL-CHANNEL USB TYPE-C PD3.1/PPS/QC5 PROTOCOL DECODER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

AP43776ZDZ20-13

Active

Diodes Inc

DUAL-CHANNEL USB TYPE-C PD3.1/PPS/QC5 PROTOCOL DECODER

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP43776ZDZ20-13

Applications	Quick Charge Decoder
Current - Supply	3 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	20-WFQFN Exposed Pad
Supplier Device Package	W-QFN4040-20 (Type A1)
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	3 V

AP43776Q Series

AUTOMOTIVE-GRADE DUAL-CHANNEL USB TYPE-C PROTOCOL DECODER

Part	Mounting Type	Package / Case	Current - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Supplier Device Package	Current - Supply [Max]	Secondary Attributes	Function	Utilized IC / Part	Contents	Primary Attributes	Type
Diodes Inc AP43776ZDZ20-13	Surface Mount	20-WFQFN Exposed Pad	3 mA	5.5 V	3 V	85 °C	-40 °C	Quick Charge Decoder	W-QFN4040-20 (Type A1)
Diodes Inc AP43776QZDZW20-13	Surface Mount Wettable Flank	20-WFQFN Exposed Pad		5.5 V	3 V	125 °C	-40 °C	Quick Charge Decoder	W-QFN4040-20 (SWP) (Type A1)	3 mA
Diodes Inc AP43776Q-EVB											On-Board LEDs	USB Type-C® Power Delivery (PD)	AP43776Q	Board(s)	2-Channel (Dual)	Power Management

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.98
		10	$ 1.46
		25	$ 1.33
		100	$ 1.18
		250	$ 1.12
		500	$ 1.11
	Digi-Reel®	1	$ 1.98
		10	$ 1.46
		25	$ 1.33
		100	$ 1.18
		250	$ 1.12
		500	$ 1.11
	Tape & Reel (TR)	3000	$ 0.91

Description

General part information

AP43776Q Series

The AP43776Q is a highly integrated, dual-channel, USB Type-C®, PD3.1 / PPS, BC 1.2 and QC protocol decoder. It is certified to USB Type-C power delivery specification Rev 3.1 with PPS and Quick Charge™ QC5 protocol.
