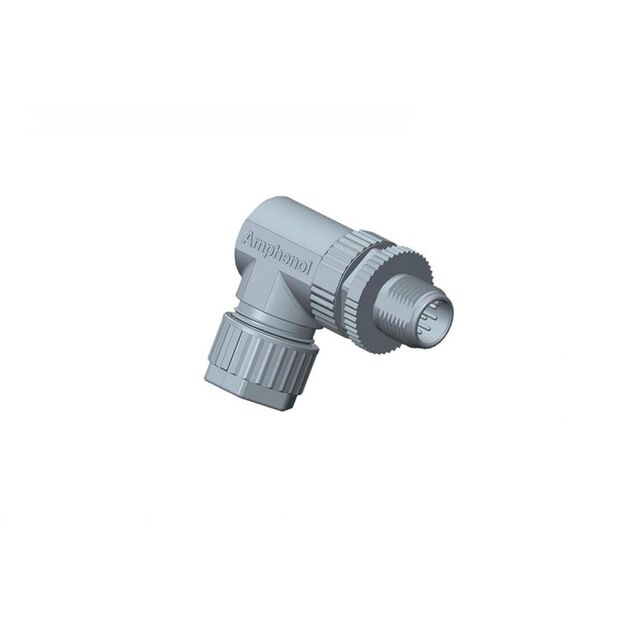

M12A-08BMMB-SR7001

Active

Amphenol LTW

SENSOR CONN, M12, R/A PLUG, 8POS, CABLE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

SENSOR CONN, M12, R/A PLUG, 8POS, CABLE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-08BMMB-SR7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.276 in
Cable Opening [Max] [diameter]	7 mm
Cable Opening [Min] [diameter]	4 mm
Cable Opening [Min] [diameter]	0.157 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shell Size - Insert	M12-8
Shielding	Unshielded
Termination	Screw
Voltage Rating	30 VDC

Part	Contact Finish - Mating	Features	Primary Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Backshell Material, Plating	Shell Size - Insert	Connector Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Color	Ingress Protection	Shielding	Contact Material	Number of Positions	Current Rating (Amps)	Termination	Mounting Type	Insert Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Amphenol LTW M12A-08BMMB-SR7001	Gold	Backshell	Plastic	A	-40 °C	105 ░C	30 VDC	Nylon Polyamide (PA)	M12-8	Male Pins Receptacle	0.276 in	4 mm	0.157 in	7 mm	Black	IP67 - Dust Tight Waterproof	Unshielded	Copper Alloy	8	2 A	Screw	Free Hanging (In-Line) Right Angle	Nylon Polyamide (PA)
Amphenol LTW M12A-08BMMB-SL7001	Gold	Backshell	Plastic	A	-40 °C	105 ░C	30 VDC	Nylon Polyamide (PA)	M12-8	Male Pins Receptacle					Black	IP67 - Dust Tight Waterproof	Unshielded	Copper Alloy	8	2 A	Screw	Free Hanging (In-Line)	Nylon Polyamide (PA)	4 mm	0.315 in	0.157 in	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Male Pins Screw
