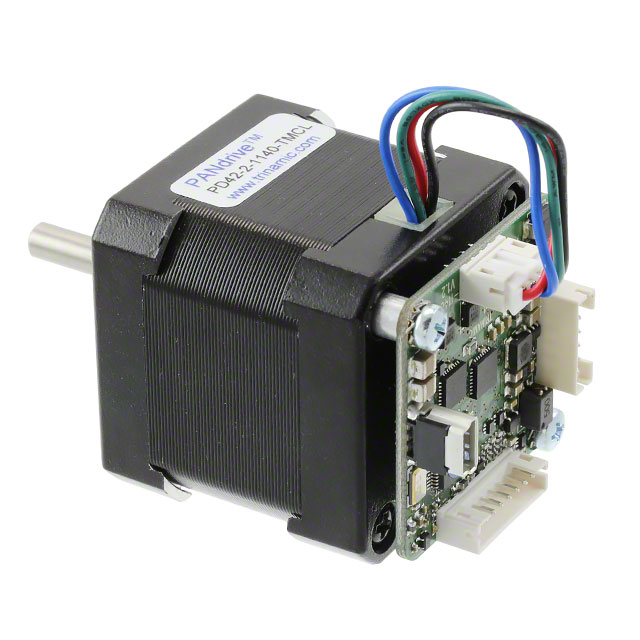

PD42-2-1140-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Search across all available documentation for this part.
PD42-2-1140-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PD42-2-1140-TMCL | PD42-2 Series |
|---|---|---|
| Coil Resistance | - | 1.2 Ohms |
| Coil Type | Bipolar | Bipolar |
| Current Rating (Amps) | 2 A | 1 - 2 A |
| Diameter - Shaft [diameter] | 0.197 in | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm | 5 mm |
| Features | Flatted Shaft, Integrated Controller | Flatted Shaft, Integrated Controller, Round Shaft |
| Function | - | Servomotor |
| Length - Shaft and Bearing | - | 0.866 in |
| Length - Shaft and Bearing | - | 22 mm |
| Length - Shaft and Bearing [x] | 24 mm | 24 mm |
| Length - Shaft and Bearing [x] | 0.945 in | 0.945 in |
| Motor Type | - | Brushless (BLDC) |
| Mounting Hole Spacing | - | 0.988 - 1.22 in |
| Mounting Hole Spacing | - | 25.1 - 31 mm |
| NEMA Frame Size | 17 | 17 |
| Operating Temperature | - | -20 C |
| Operating Temperature | - | 40 - 50 °C |
| Rotor Inertia | - | 57 gcm² |
| RPM | - | 4000 RPM |
| Size / Dimension [x] | 42 mm | 42 mm |
| Size / Dimension [x] | 1.654 in | 1.654 in |
| Size / Dimension [y] | 1.654 " | 1.654 " |
| Size / Dimension [y] | 42 mm | 42 mm |
| Step Angle | 1.8 ° | 1.8 ° |
| Steps per Revolution | 200 | 200 |
| Termination Style | - | Connector |
| Torque - Holding (oz-in / mNm) | 360 mNm | 350 - 360 mNm |
| Torque - Holding (oz-in / mNm) | 51 oz-in | 49.56 - 51 oz-in |
| Type | Hybrid | Hybrid, DC Motor |
| Voltage - Rated | 24 VDC | 2.4 - 24 VDC |
| Weight | 220.45 g, 0.486 lb | 0.486 - 220.45 g |
| Weight | - | 320.24 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 244.10 | |
| 5 | $ 224.33 | |||
| 10 | $ 216.31 | |||
| 25 | $ 214.40 | |||
PD42-2 Series
STEPPER MOTOR HYBRID BIPOLAR 24V
| Part | Step Angle | Type | NEMA Frame Size | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Weight | Steps per Revolution | Features | Coil Type | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Current Rating (Amps) | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Hole Spacing | Mounting Hole Spacing | Function | RPM | Length - Shaft and Bearing | Length - Shaft and Bearing | Motor Type | Coil Resistance | Termination Style | Rotor Inertia | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated PD42-2-1141 | 1.8 ° | Hybrid | 17 | 0.197 in | 5 mm | 0.486 lb, 220.45 g | 200 | Flatted Shaft, Integrated Controller | Bipolar | 49.56 oz-in | 350 mNm | 2 A | 24 mm | 0.945 in | 42 mm | 1.654 " | 1.654 in | 42 mm | 24 VDC | |||||||||||||
Analog Devices Inc./Maxim Integrated PD42-2-1140-CANOPEN | 1.8 ° | Hybrid | 17 | 0.197 in | 5 mm | 0.486 lb, 220.45 g | 200 | Flatted Shaft, Integrated Controller | Bipolar | 51 oz-in | 360 mNm | 2 A | 24 mm | 0.945 in | 42 mm | 1.654 " | 1.654 in | 42 mm | 24 VDC | |||||||||||||
Analog Devices Inc./Maxim Integrated PD42-2-1670-CANOPEN | DC Motor | 0.197 in | 5 mm | Flatted Shaft, Integrated Controller | 42 mm | 1.654 " | 1.654 in | 42 mm | 24 VDC | -20 C | 40 °C | 0.988 in | 25.1 mm | Servomotor | 4000 RPM | 0.866 in | 22 mm | Brushless (BLDC) | ||||||||||||||
Analog Devices Inc./Maxim Integrated PD42-2-1370-TMCL | 1.8 ° | Hybrid | 17 | 0.197 in | 5 mm | 200 | Flatted Shaft, Integrated Controller | Bipolar | 50.98 oz-in | 360 mNm | 2 A | 24 mm | 0.945 in | 42 mm | 1.654 " | 1.654 in | 42 mm | 2.4 V | -20 C | 50 °C | 1.22 in | 31 mm | 1.2 Ohms | Connector | 57 gcm² | |||||||
Analog Devices Inc./Maxim Integrated PD42-2-1070 | 1.8 ° | Hybrid | 17 | 0.706 lb | 200 | Integrated Controller, Round Shaft | Bipolar | 51 oz-in | 360 mNm | 1 A | 42 mm | 1.654 " | 1.654 in | 42 mm | 24 VDC | -20 C | 50 °C | 1.22 in | 30.99 mm | 1.2 Ohms | Connector | 57 gcm² | 320.24 g | |||||||||
Analog Devices Inc./Maxim Integrated PD42-2-1670-TMCL | DC Motor | 0.197 in | 5 mm | Flatted Shaft, Integrated Controller | 42 mm | 1.654 " | 1.654 in | 42 mm | 24 VDC | -20 C | 40 °C | 0.988 in | 25.1 mm | Servomotor | 4000 RPM | 0.866 in | 22 mm | Brushless (BLDC) | ||||||||||||||
Analog Devices Inc./Maxim Integrated PD42-2-1140-TMCL | 1.8 ° | Hybrid | 17 | 0.197 in | 5 mm | 0.486 lb, 220.45 g | 200 | Flatted Shaft, Integrated Controller | Bipolar | 51 oz-in | 360 mNm | 2 A | 24 mm | 0.945 in | 42 mm | 1.654 " | 1.654 in | 42 mm | 24 VDC | |||||||||||||
Analog Devices Inc./Maxim Integrated PD42-2-1240-TMCL | 1.8 ° | Hybrid | 17 | 0.197 in | 5 mm | 200 | Flatted Shaft, Integrated Controller | Bipolar | 50.98 oz-in | 360 mNm | 2 A | 24 mm | 0.945 in | 42 mm | 1.654 " | 1.654 in | 42 mm | 24 VDC | -20 C | 50 °C | 1.22 in | 31 mm | 1.2 Ohms | 57 gcm² |
Description
General part information
PD42-2 Series
Bipolar Stepper Motor Hybrid Frame Size 17 200.0 Step 2 A 24VDC
