T4110402041-000
ActiveTE Connectivity AMP Connectors

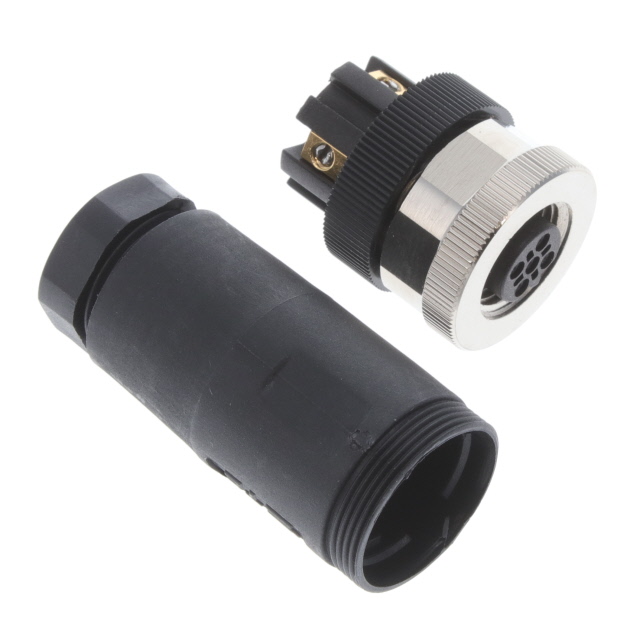

CONN PLUG FMALE 4POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
T4110402041-000
ActiveTE Connectivity AMP Connectors
CONN PLUG FMALE 4POS GOLD SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4110402041-000 | T41104 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Backshell Material, Plating | Glass Filled, Polybutylene Terephthalate (PBT) | Nickel, Brass, Glass Filled, Polybutylene Terephthalate (PBT) |
| Cable Opening | - | 4 - 6 mm |
| Cable Opening | - | 0.157 - 0.236 in |
| Cable Opening [Max] [custom] | 8 mm | 8 mm |
| Cable Opening [Max] [custom] | 0.315 in | 0.315 in |
| Cable Opening [Min] [custom] | 6 mm | 6 mm |
| Cable Opening [Min] [custom] | 0.236 in | 0.236 in |
| Color | Black, Silver | Silver, Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Silver, Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 - 80 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 - 2.03 µm |
| Contact Material | Zinc Alloy | Bronze, Zinc Alloy |
| Current Rating (Amps) | 4 A | 4 A |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 2 - 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | B | B |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Brass | Brass |
| Shell Size - Insert | M12-4 | M12-2, M12-4, M12-5, M12-3 |
| Shielding | Unshielded | Shielded, Unshielded |
| Termination | Screw | Screw |
| Voltage Rating | 250 VDC | 60 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.24 | |
| 10 | $ 6.31 | |||
| 25 | $ 6.15 | |||
| 50 | $ 5.98 | |||
| 100 | $ 5.62 | |||
| 250 | $ 5.58 | |||
| 500 | $ 5.25 | |||
| 1000 | $ 4.69 | |||
T41104 Series
CONN PLUG FMALE 2P SILVER SCREW
| Part | Connector Type | Cable Opening [diameter] | Cable Opening [diameter] | Contact Material | Shell Finish | Primary Material | Insert Material | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Orientation | Shielding | Applications | Voltage Rating | Current Rating (Amps) | Features | Color | Shell Size - Insert | Mounting Type | Backshell Material, Plating | Termination | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4110411022-000 | Female Sockets, Plug | 4 mm, 6 mm | 0.157 in, 0.236 in | Bronze | Nickel | Metal | Nylon, Polyamide (PA) | Silver | 2.03 µm | 80 µin | 2 | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Shielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Silver | M12-2 | Free Hanging (In-Line) | Brass, Nickel | Screw | ||||
TE Connectivity AMP Connectors T4110412042-000 | Female Sockets, Plug | Bronze | Nickel | Metal | Nylon, Polyamide (PA) | Silver | 2.03 µm | 80 µin | 4 | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Shielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Silver | M12-4 | Free Hanging (In-Line) | Brass, Nickel | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | ||
TE Connectivity AMP Connectors T4110401051-000 | Female Sockets, Plug | 4 mm, 6 mm | 0.157 in, 0.236 in | Zinc Alloy | Nickel | Metal | Nylon, Polyamide (PA) | Gold | 0.076 µm | 3 µin | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Unshielded | Industrial | 60 VDC | 4 A | Backshell, Coupling Nut | Black, Silver | M12-5 | Free Hanging (In-Line) | Glass Filled, Polybutylene Terephthalate (PBT) | Screw | |||||
TE Connectivity AMP Connectors T4110401031-000 | Female Sockets, Plug | 4 mm, 6 mm | 0.157 in, 0.236 in | Zinc Alloy | Nickel | Metal | Nylon, Polyamide (PA) | Gold | 0.076 µm | 3 µin | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Unshielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Black, Silver | M12-3 | Free Hanging (In-Line) | Glass Filled, Polybutylene Terephthalate (PBT) | Screw | |||||
TE Connectivity AMP Connectors T4110402022-000 | Female Sockets, Plug | Bronze | Nickel | Metal | Nylon, Polyamide (PA) | Silver | 2.03 µm | 80 µin | 2 | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Unshielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Black, Silver | M12-2 | Free Hanging (In-Line) | Glass Filled, Polybutylene Terephthalate (PBT) | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | ||
TE Connectivity AMP Connectors T4110412051-000 | Female Sockets, Plug | Zinc Alloy | Nickel | Metal | Nylon, Polyamide (PA) | Gold | 0.076 µm | 3 µin | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Shielded | Industrial | 60 VDC | 4 A | Backshell, Coupling Nut | Silver | M12-5 | Free Hanging (In-Line) | Brass, Nickel | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | |||
TE Connectivity AMP Connectors T4110402042-000 | Female Sockets, Plug | Bronze | Nickel | Metal | Nylon, Polyamide (PA) | Silver | 2.03 µm | 80 µin | 4 | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Unshielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Black, Silver | M12-4 | Free Hanging (In-Line) | Glass Filled, Polybutylene Terephthalate (PBT) | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | ||
TE Connectivity AMP Connectors T4110411032-000 | Female Sockets, Plug | 4 mm, 6 mm | 0.157 in, 0.236 in | Bronze | Nickel | Metal | Nylon, Polyamide (PA) | Silver | 2.03 µm | 80 µin | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Shielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Silver | M12-3 | Free Hanging (In-Line) | Brass, Nickel | Screw | |||||
TE Connectivity AMP Connectors T4110402032-000 | Female Sockets, Plug | Bronze | Nickel | Metal | Nylon, Polyamide (PA) | Silver | 2.03 µm | 80 µin | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Unshielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Black, Silver | M12-3 | Free Hanging (In-Line) | Glass Filled, Polybutylene Terephthalate (PBT) | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | |||
TE Connectivity AMP Connectors T4110411042-000 | Female Sockets, Plug | 4 mm, 6 mm | 0.157 in, 0.236 in | Bronze | Nickel | Metal | Nylon, Polyamide (PA) | Silver | 2.03 µm | 80 µin | 4 | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Shielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Silver | M12-4 | Free Hanging (In-Line) | Brass, Nickel | Screw | ||||
TE Connectivity AMP Connectors T4110411031-000 | Female Sockets, Plug | 4 mm, 6 mm | 0.157 in, 0.236 in | Bronze | Nickel | Metal | Nylon, Polyamide (PA) | Gold | 0.076 µm | 3 µin | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Shielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Silver | M12-3 | Free Hanging (In-Line) | Brass, Nickel | Screw | |||||
TE Connectivity AMP Connectors T4110411041-000 | Female Sockets, Plug | 4 mm, 6 mm | 0.157 in, 0.236 in | Zinc Alloy | Nickel | Metal | Nylon, Polyamide (PA) | Gold | 0.076 µm | 3 µin | 4 | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Shielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Silver | M12-4 | Free Hanging (In-Line) | Brass, Nickel | Screw | ||||
TE Connectivity AMP Connectors T4110412032-000 | Female Sockets, Plug | Bronze | Nickel | Metal | Nylon, Polyamide (PA) | Silver | 2.03 µm | 80 µin | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Shielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Silver | M12-3 | Free Hanging (In-Line) | Brass, Nickel | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | |||
TE Connectivity AMP Connectors T4110411051-000 | Female Sockets, Plug | 4 mm, 6 mm | 0.157 in, 0.236 in | Zinc Alloy | Nickel | Metal | Nylon, Polyamide (PA) | Gold | 0.076 µm | 3 µin | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Shielded | Industrial | 60 VDC | 4 A | Backshell, Coupling Nut | Silver | M12-5 | Free Hanging (In-Line) | Brass, Nickel | Screw | |||||
TE Connectivity AMP Connectors T4110402041-000 | Female Sockets, Plug | Zinc Alloy | Nickel | Metal | Nylon, Polyamide (PA) | Gold | 0.076 µm | 3 µin | 4 | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Unshielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Black, Silver | M12-4 | Free Hanging (In-Line) | Glass Filled, Polybutylene Terephthalate (PBT) | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | ||
TE Connectivity AMP Connectors T4110411021-000 | Female Sockets, Plug | 4 mm, 6 mm | 0.157 in, 0.236 in | Bronze | Nickel | Metal | Nylon, Polyamide (PA) | Gold | 0.076 µm | 3 µin | 2 | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Shielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Silver | M12-2 | Free Hanging (In-Line) | Brass, Nickel | Screw | ||||
TE Connectivity AMP Connectors T4110402052-000 | Female Sockets, Plug | Bronze | Nickel | Metal | Nylon, Polyamide (PA) | Silver | 2.03 µm | 80 µin | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Unshielded | Industrial | 60 VDC | 4 A | Backshell, Coupling Nut | Black, Silver | M12-5 | Free Hanging (In-Line) | Glass Filled, Polybutylene Terephthalate (PBT) | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | |||
TE Connectivity AMP Connectors T4110401021-000 | Female Sockets, Plug | 4 mm, 6 mm | 0.157 in, 0.236 in | Bronze | Nickel | Metal | Nylon, Polyamide (PA) | Gold | 0.076 µm | 3 µin | 2 | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Unshielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Black, Silver | M12-2 | Free Hanging (In-Line) | Glass Filled, Polybutylene Terephthalate (PBT) | Screw | ||||
TE Connectivity AMP Connectors T4110412022-000 | Female Sockets, Plug | Bronze | Nickel | Metal | Nylon, Polyamide (PA) | Silver | 2.03 µm | 80 µin | 2 | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Shielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Silver | M12-2 | Free Hanging (In-Line) | Brass, Nickel | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | ||
TE Connectivity AMP Connectors T4110402021-000 | Female Sockets, Plug | Zinc Alloy | Nickel | Metal | Nylon, Polyamide (PA) | Gold | 0.076 µm | 3 µin | 2 | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Unshielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Black, Silver | M12-2 | Free Hanging (In-Line) | Glass Filled, Polybutylene Terephthalate (PBT) | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | ||
TE Connectivity AMP Connectors T4110401032-000 | Female Sockets, Plug | 4 mm, 6 mm | 0.157 in, 0.236 in | Bronze | Nickel | Metal | Nylon, Polyamide (PA) | Silver | 2.03 µm | 80 µin | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Brass | B | Unshielded | Industrial | 250 VDC | 4 A | Backshell, Coupling Nut | Black, Silver | M12-3 | Free Hanging (In-Line) | Glass Filled, Polybutylene Terephthalate (PBT) | Screw |
Description
General part information
T41104 Series
4 Position Circular Connector Plug, Female Sockets Screw
