245652100005829+T

Active

KYOCERA AVX

5652 SERIES, FLOXY, 0.5MM PITCH,

Search across all available documentation for this part.

Active

KYOCERA AVX

5652 SERIES, FLOXY, 0.5MM PITCH,

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	245652100005829+T	245652 Series

Connector Type	Floating, Receptacle	Floating, Receptacle
Features	Solder Retention, Board Guide	Solder Retention, Board Guide
Height Above Board [z]	11.25 mm	11.25 mm
Height Above Board [z]	0.443 "	0.443 "
Mated Stacking Heights	25 mm, 15 mm	15 - 25 mm
Mounting Type	Surface Mount	Surface Mount
Number of Positions	100	60 - 100
Number of Rows	2	2
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in

5652 SERIES, FLOXY, 0.5MM PITCH,

Part	Pitch [x]	Pitch [x]	Mounting Type	Connector Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Features	Mated Stacking Heights	Number of Rows
KYOCERA AVX 245652100005829+T	0.5 mm	0.02 in	Surface Mount	Floating, Receptacle	11.25 mm	0.443 "	100	Board Guide, Solder Retention	15 mm, 25 mm	2
KYOCERA AVX 245652060001829+T	0.5 mm	0.02 in	Surface Mount	Floating, Receptacle	11.25 mm	0.443 "	60	Board Guide, Solder Retention	15 mm, 25 mm	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

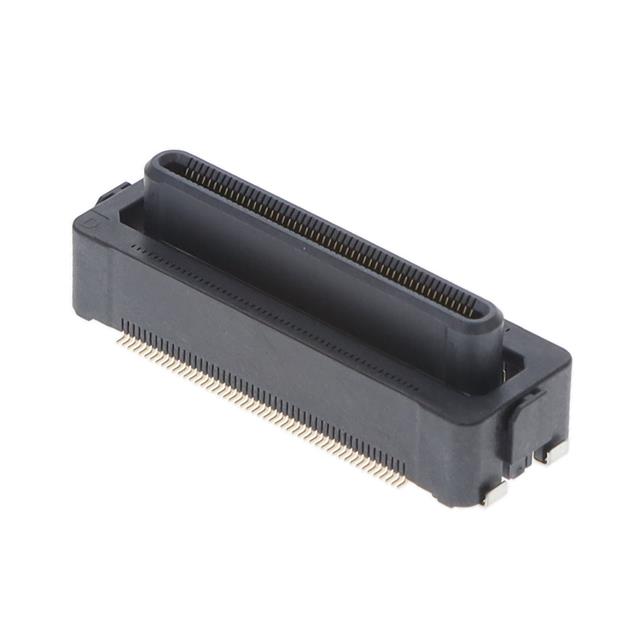

100 Position Connector Receptacle, Floating Surface Mount
