4950-1"X36YD-SMPK

Active

3M (TC)

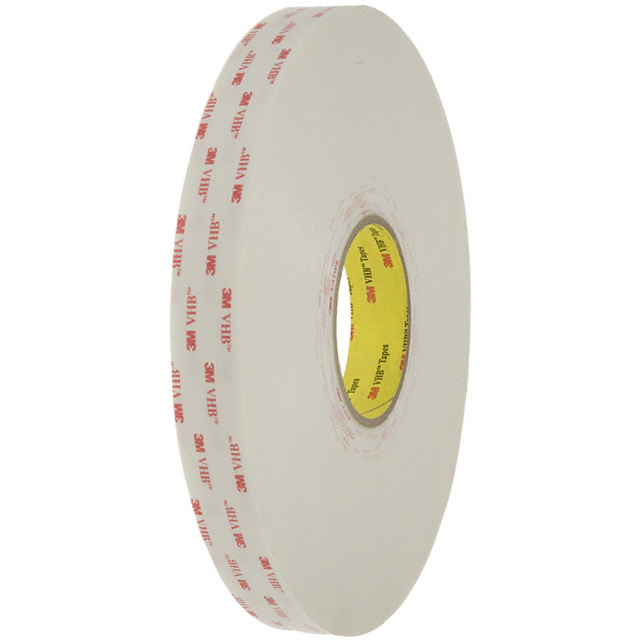

VHB TAPE 4950 WHITE SMALL PACK, 1 IN X 36 YD

Search across all available documentation for this part.

Active

3M (TC)

VHB TAPE 4950 WHITE SMALL PACK, 1 IN X 36 YD

Technical Specifications

Parameters and characteristics for this part

Specification	4950-1"X36YD-SMPK

Adhesive	Acrylic
Backing, Carrier	Paper
Color	White
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	200 °F
Temperature Range	93 °C
Thickness	1.143 mm
Thickness	45 mils
Thickness	0.045 in
Thickness - Adhesive [custom]	42 mils
Thickness - Adhesive [custom]	0.042 in
Thickness - Adhesive [custom]	1.067 mm
Thickness - Backing, Carrier	0.003 in
Thickness - Backing, Carrier	3 mils
Thickness - Backing, Carrier	0.076 mm
Usage	General Purpose
Width [x]	25.4 mm
Width [x]	1 in

Part	Length	Length	Length	Backing, Carrier	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Shelf Life Start	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Adhesive	Thickness	Thickness	Thickness	Tape Type	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Width [y]	Width [y]	Usage	Shelf Life	Temperature Range	Temperature Range	Width	Width	Width	Width [x]	Width [x]
3M (TC) 4950-WHITE-2"X36YD	36 yd	32.9 m	108 ft	Paper	42 mils	0.042 in	1.067 mm	Date of Shipment	4 °C 40 °F	38 °C 100 °F	Acrylic	1.143 mm	45 mils	0.045 in	Double Coated Double Sided	0.003 in	3 mils	0.076 mm	White	2 "	50.8 mm	General Purpose	24 Months	200 °F	93 °C
3M (TC) 4950-WHITE-1/2"X36YD	36 yd	32.9 m	108 ft	Paper	42 mils	0.042 in	1.067 mm	Date of Manufacture	4 °C 40 °F	38 °C 100 °F	Acrylic	1.143 mm	45 mils	0.045 in	Double Coated Double Sided	0.003 in	3 mils	0.076 mm	White			General Purpose	24 Months	200 °F	93 °C	0.5 in	12.7 mm	0.5 in
3M (TC) 4950-3/4"X36YD-SMPK	36 yd	32.9 m	108 ft	Paper	42 mils	0.042 in	1.067 mm	Date of Shipment	4 °C 40 °F	38 °C 100 °F	Acrylic	1.143 mm	45 mils	0.045 in	Double Coated Double Sided	0.003 in	3 mils	0.076 mm	White			General Purpose	24 Months	200 °F	93 °C	19.05 mm	0.75 in	0.75 in
3M (TC) 4950-1"X36YD-SMPK	36 yd	32.9 m	108 ft	Paper	42 mils	0.042 in	1.067 mm	Date of Shipment	4 °C 40 °F	38 °C 100 °F	Acrylic	1.143 mm	45 mils	0.045 in	Double Coated Double Sided	0.003 in	3 mils	0.076 mm	White			General Purpose	24 Months	200 °F	93 °C				25.4 mm	1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Double Coated, Double Sided Tape Acrylic Adhesive White 1.00" (25.40mm) X 108' (32.9m) 36 yds

Technical documentation and resources
