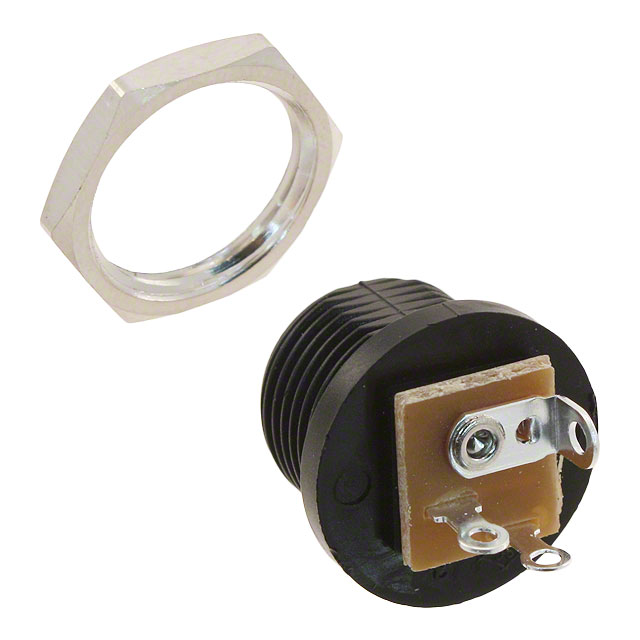

PJ-011A

Active

CUI Devices

CONN PWR JACK 2X5.5MM SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN PWR JACK 2X5.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-011A

Actual Diameter [diameter]	0.236 ", 2 mm, 0.079 ", 6 mm
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	5 A
Features	Thread Lock, Mounting Hardware
Gender	Male
Housing Material	Polyoxymethylene (POM)
Includes	1 Nut, 1 Connector
Industry Recognized Mating Diameter [diameter]	0.083 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.1 mm
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions/Contacts	3 Conductors, 2 Conductors
Shielding	Unshielded
Termination	Solder Eyelet(s)
Voltage - Rated	24 VDC

Part	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Number of Positions/Contacts	Body Color	Gender	Termination	Internal Switch(s)	Shielding	Contact Material	Current Rating (Amps)	Material Flammability Rating	Actual Diameter [diameter]	Contact Material - Plating [custom]	Includes	Housing Material	Mounting Feature	Voltage - Rated	Features	Connector Type
CUI Devices PJ-011A	0.083 in 0.217 "	2.1 mm 5.5 mm	2 Conductors 3 Conductors	Black	Male	Solder Eyelet(s)	Normally Closed Single Switch	Unshielded	Brass Copper Alloy	5 A	UL94 V-0	0.079 " 0.236 " 2 mm 6 mm	Nickel	1 Connector 1 Nut	Polyoxymethylene (POM)	Bulkhead - Front Side Nut	24 VDC	Mounting Hardware Thread Lock	Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Panel Mount
