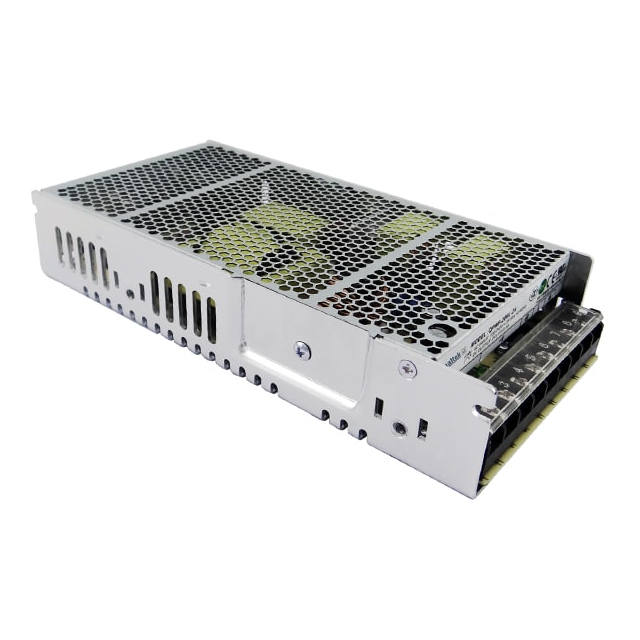

QPWF-200L-48

Active

AC/DC CONVERTER 48V 200W

Active

AC/DC CONVERTER 48V 200W

Description

General part information

Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC Input

Parameters and characteristics for this part

Specification	QPWF-200L-48

Applications	ITE (Commercial)
Approval Agency	cURus, CE, CB
Current - Output 1	4.2 A
Efficiency	88.5 %
Features	DC Input Capable, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	200 W
Size / Dimension Height	1.5 in
Size / Dimension Length	7.83 in
Size / Dimension Width	3.9 in
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Isolation	3 kV
Voltage - Output 1	48 V

Part	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Features	Voltage - Isolation	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Type	Efficiency	Mounting Type	Approval Agency	Voltage - Output 1	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Number of Outputs	Current - Output 1	Applications
Qualtek QPWF-200L-48	70 °C	-20 °C	200 W	Adjustable Output DC Input Capable Universal Input	3 kV	7.83 in	1.5 in	3.9 in	Enclosed	88.5 %	Chassis Mount	CB CE cURus	48 V	90 V	264 V	1	4.2 A	ITE (Commercial)
Qualtek QPWF-200L-24	70 °C	-20 °C	200 W	Adjustable Output DC Input Capable Universal Input	3 kV	7.83 in	1.5 in	3.9 in	Enclosed	88 %	Chassis Mount	CB CE cURus	24 V	90 V	264 V	1	8.4 A	ITE (Commercial)
