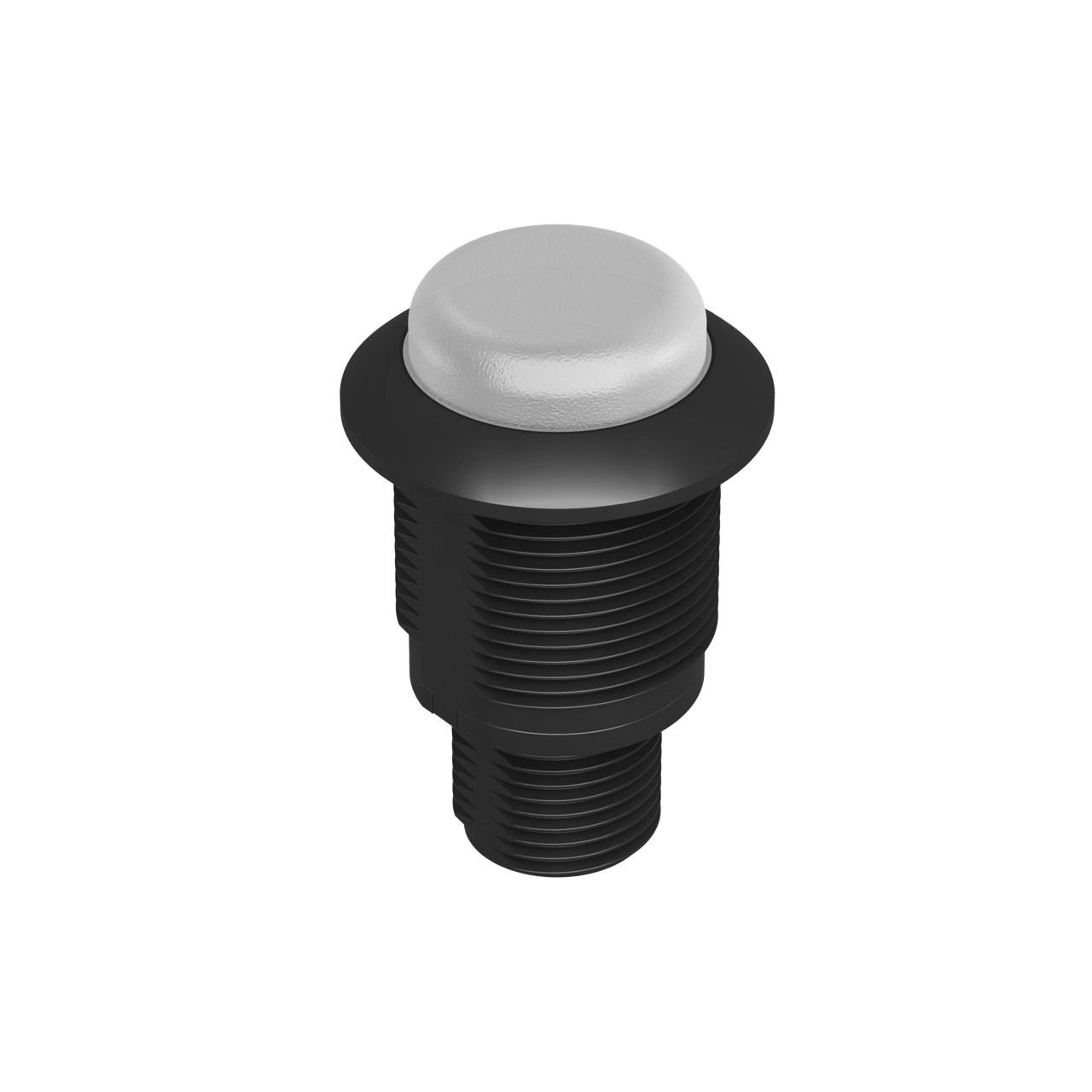

S18LYXXPQ

Active

BANNER ENGINEERING

S18 EZ-LIGHT - 18 MM - IP67

Search across all available documentation for this part.

Active

BANNER ENGINEERING

S18 EZ-LIGHT - 18 MM - IP67

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Lamp Color	Voltage [Max]	Voltage [Min]	Type	Panel Cutout Shape	Lens Size [diameter]	Viewing Angle	Current	Ingress Protection	Termination Style	Millicandela Rating	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Transparency
BANNER ENGINEERING S18LYXXP	DC	Yellow	30 V	10 V	LED	Round	16 mm	180 °	25 mA	IP67 IP69K
BANNER ENGINEERING S18LYXXPT	DC	Yellow	30 V	10 V	LED	Round	16 mm	180 °	25 mA	IP67 IP69K	Screw Terminal
BANNER ENGINEERING S18LYXXPQ	DC	Yellow	30 V	10 V	LED	Round			25 mA	IP67 IP69K NEMA 4X	Quick Connect	0.8 mcd	18 mm	0.71 "	Clear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 38.00
Newark	Each	1	$ 39.00

General part information

LED Panel Indicator Yellow Clear 10V ~ 30V 25mA Quick Connect
