1004-1511-000

Active

Radiall USA, Inc.

SMC M STR BHD SP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC M STR BHD SP

Technical Specifications

Parameters and characteristics for this part

Specification	1004-1511-000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

SMC M STR BHD SP

Part	Impedance	Mating Cycles	Contact Termination	Insertion Loss	Body Finish	Number of Ports	Center Contact Material	Housing Color	Center Contact Plating	Frequency - Max [Max]	Shield Termination	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Connector Type	Connector Style	Mounting Feature	Body Material
Radiall USA, Inc. 1004-1511-000	50 Ohms	500	Solder Cup	0.25 dB	Gold	1	Brass	Gold	Gold	10 GHz	Solder	1 Connector, 1 Lockwasher, 1 Nut	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Jack, Male Pin	SMC	Bulkhead - Front Side Nut	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

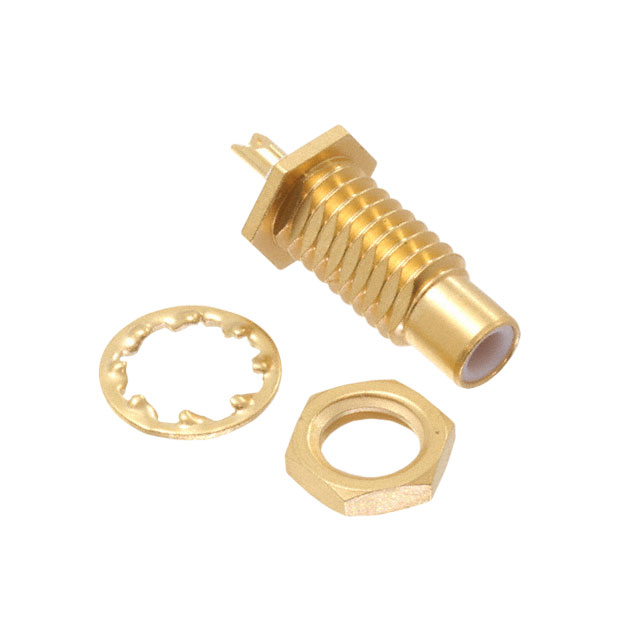

SMC Connector Jack, Male Pin 50 Ohms Panel Mount Solder Cup
