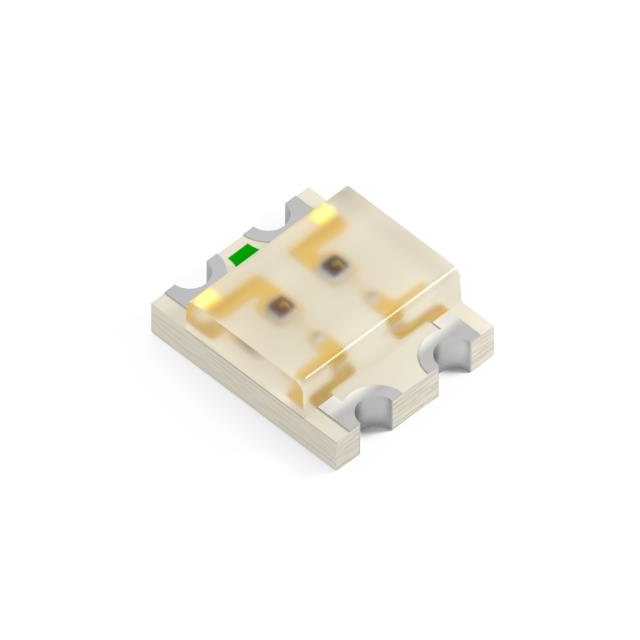

XZMDKVG98W
ActiveSunLED
LED GREEN/RED CLEAR CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZMDKVG98W
ActiveSunLED
LED GREEN/RED CLEAR CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMDKVG98W |
|---|---|
| Color | Red, Green |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 1.3 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2.7 mm |
| Lens Size [y] | 2 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 54 mcd |
| Millicandela Rating [custom] | 248 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Supplier Device Package | Chip LED |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 2.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 1.95 V |
| Wavelength - Dominant [custom] | 570 nm, 465 nm |
| Wavelength - Peak | 574 nm, 645 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.37 | |||
| 100 | $ 0.21 | |||
| 1000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 10 | $ 0.37 | |||
| 100 | $ 0.21 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 2000 | $ 0.15 | ||
| 6000 | $ 0.14 | |||
| 10000 | $ 0.13 | |||
| 50000 | $ 0.12 | |||
Description
General part information
XZMDKVG98 Series
Green, Red 570nm Green, 465nm Blue LED Indication - Discrete 2.1V Green, 1.95V Red 1210 (3225 Metric)
