179-009-613R671

Active

NorComp Inc.

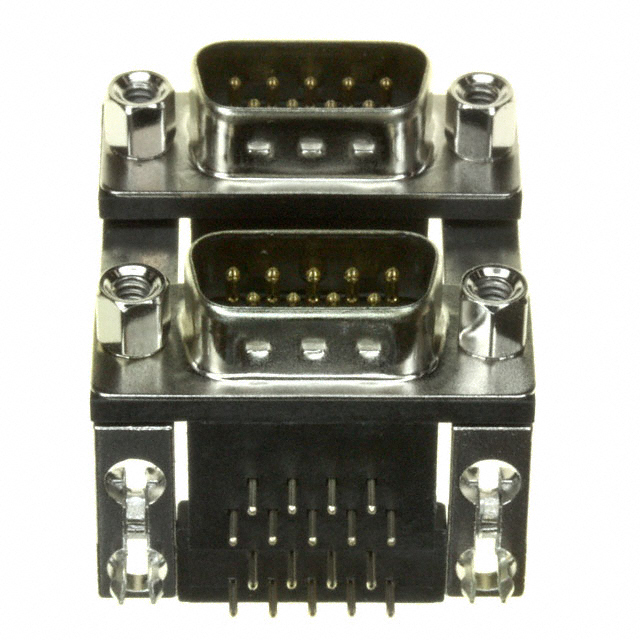

STACKED D SUB CONNECTOR, 179 SERIES, DE, PLUG, 9 CONTACTS, DE, PLUG

179-009-613R671

Active

NorComp Inc.

STACKED D SUB CONNECTOR, 179 SERIES, DE, PLUG, 9 CONTACTS, DE, PLUG

Description Specifications Series Pricing CAD Documents

Description

General part information

179-009 Series

9, 9 Position D-Sub - Stacked Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	179-009-613R671

Backset Spacing	0.318 in
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded, Grounding Indents, Board Lock
Finish	Nickel Plated
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	9
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size, Connector Layout	1 (DE, E)
Termination	Solder

179-009 Series

Part	Contact Finish	Flange Feature	Contact Finish Thickness (string set options)	Contact Finish Thickness	Current Rating	Features	Number of Rows	Termination	Shell Material	Finish	Connector Style	Contact Type	Shell Size, Connector Layout	Mounting Type	Number of Positions	Number of Positions	Connector Type	Material Flammability Rating	Backset Spacing	Contact Form	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Contact Material	Color
NorComp Inc. 179-009-613R571	Gold	Female Screwlock (4-40) Mating Side	Flash	Flash	5 A	Board Lock Grounding Indents Shielded	2	Solder	Steel	Nickel Plated	D-Sub - Stacked	Signal	1 (DE E)	Board Edge Right Angle Through Hole	9	9	Male Pins Plug	UL94 V-0	0.318 in	Stamped	-55 °C	105 °C	Nylon 9T Polyamide (PA9T)	Brass	Black
NorComp Inc. 179-009-512-571	Gold	Female Screwlock (4-40) Mating Side	Flash	Flash	5 A	Board Lock	2	Solder	Steel	Tin Plated	D-Sub - Stacked	Signal	1 (DE E)	Board Edge Right Angle Through Hole	9	9	Female Sockets Receptacle	UL94 V-0	0.318 in	Stamped	-55 °C	105 °C	Glass Filled Polyester	Brass	Black
NorComp Inc. 179-009-412-571	Gold	Female Screwlock (4-40) Mating Side	Flash	Flash	5 A	Board Lock Grounding Indents	2	Solder	Steel	Tin Plated	D-Sub - Stacked	Signal	1 (DE E)	Board Edge Right Angle Through Hole	9	9	Female Sockets Male Pins Plug Receptacle	UL94 V-0	0.318 in	Stamped	-55 °C	105 °C	Glass Filled Polyester	Brass	Black
NorComp Inc. 179-009-313R491	Gold	Housing Shell (4-40)	Flash	Flash	5 A	Board Lock Grounding Indents Shielded	2	Solder	Steel	Nickel Plated	D-Sub - Stacked	Signal	1 (DE E)	Board Edge Right Angle Through Hole	9	9	Female Sockets Male Pins Plug Receptacle	UL94 V-0	0.318 in	Stamped	-55 °C	105 °C	Nylon 9T Polyamide (PA9T)	Brass	Black
NorComp Inc. 179-009-513R451	Gold	Housing Shell (4-40)	Flash	Flash	5 A	Shielded	2	Solder	Steel	Nickel Plated	D-Sub - Stacked	Signal	1 (DE E)	Board Edge Right Angle Through Hole	9	9	Female Sockets Receptacle	UL94 V-0	0.318 in	Stamped	-55 °C	105 °C	Nylon 9T Polyamide (PA9T)	Brass	Black
NorComp Inc. 179-009-613R691	Gold	Housing Shell (4-40)	Flash	Flash	5 A	Board Lock Grounding Indents Shielded	2	Solder	Steel	Nickel Plated	D-Sub - Stacked	Signal	1 (DE E)	Board Edge Right Angle Through Hole	9	9	Male Pins Plug	UL94 V-0	0.318 in	Stamped	-55 °C	105 °C	Nylon 9T Polyamide (PA9T)	Brass	Black
NorComp Inc. 179-009-513R671	Gold	Female Screwlock (4-40) Mating Side	Flash	Flash	5 A	Board Lock Shielded	2	Solder	Steel	Nickel Plated	D-Sub - Stacked	Signal	1 (DE E)	Board Edge Right Angle Through Hole	9	9	Female Sockets Receptacle	UL94 V-0	0.318 in	Stamped	-55 °C	105 °C	Nylon 9T Polyamide (PA9T)	Brass	Black
NorComp Inc. 179-009-513R481	Gold	Female Screwlock (4-40) Mating Side	Flash	Flash	5 A	Shielded	2	Solder	Steel	Nickel Plated	D-Sub - Stacked	Signal	1 (DE E)	Board Edge Right Angle Through Hole	9	9	Female Sockets Receptacle	UL94 V-0	0.318 in	Stamped	-55 °C	105 °C	Nylon 9T Polyamide (PA9T)	Brass	Black
NorComp Inc. 179-009-413R491	Gold	Housing Shell (4-40)	Flash	Flash	5 A	Board Lock Grounding Indents Shielded	2	Solder	Steel	Nickel Plated	D-Sub - Stacked	Signal	1 (DE E)	Board Edge Right Angle Through Hole	9	9	Female Sockets Male Pins Plug Receptacle	UL94 V-0	0.318 in	Stamped	-55 °C	105 °C	Nylon 9T Polyamide (PA9T)	Brass	Black
NorComp Inc. 179-009-613R671	Gold	Female Screwlock (4-40) Mating Side	Flash	Flash	5 A	Board Lock Grounding Indents Shielded	2	Solder	Steel	Nickel Plated	D-Sub - Stacked	Signal	1 (DE E)	Board Edge Right Angle Through Hole	9	9	Male Pins Plug	UL94 V-0	0.318 in	Stamped	-55 °C	105 °C	Nylon 9T Polyamide (PA9T)	Brass	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

179-009-613R671 | Datasheet

STACKED Brochure (PDF)

3D Product Image EN

White Papers EN
