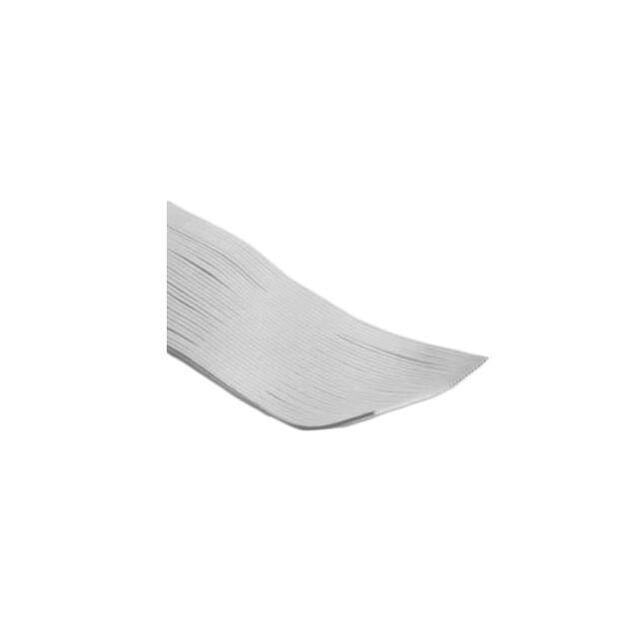

3667/14

Active

3M (TC)

CBL RIBN 14COND 0.05 GRAY 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3667/14

Active

3M (TC)

CBL RIBN 14COND 0.05 GRAY 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3667/14

Cable Type	Split Conductor, Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [x]	0.7 in
Ribbon Width [x]	17.78 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3667 Series

Part	Pitch [x]	Pitch [x]	Conductor Material	Features	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	First Conductor Mark	Wire Gauge	Ratings	Number of Conductors	Shielding	Ribbon Thickness	Ribbon Thickness	Voltage	Jacket (Insulation) Material	Length	Length	Ribbon Width [custom]	Ribbon Width [custom]	Jacket Color	Insulation Resistance	Ribbon Width [x]	Ribbon Width [x]	Length [x]	Length [x]	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width	Ribbon Width	Spool Size	Spool Size	Length
3M (TC) 3667/10 300	0.05 in	1.27 mm	Copper Tinned	Zippable	Flat Cable Split Conductor	-20 C	105 ░C	7	36 AWG	Red	28 AWG	UL Style 2651	10	Unshielded	0.89 mm	0.035 in	300 V	Poly-Vinyl Chloride (PVC)	91.44 m	300 ft	0.5 "	12.7 mm	Gray	10 GOhm
3M (TC) 3667/14	0.05 in	1.27 mm	Copper Tinned	Zippable	Flat Cable Split Conductor	-20 C	105 ░C	7	36 AWG	Red	28 AWG	UL Style 2651	14	Unshielded	0.89 mm	0.035 in	300 V	Poly-Vinyl Chloride (PVC)					Gray	10 GOhm	0.7 in	17.78 mm	100 ft	30.48 m
3M (TC) 3667/16	0.05 in	1.27 mm	Copper Tinned	Zippable	Flat Cable Split Conductor	-20 C	105 ░C	7	36 AWG	Red	28 AWG	UL Style 2651	16	Unshielded	0.89 mm	0.035 in	300 V	Poly-Vinyl Chloride (PVC)					Gray	10 GOhm			100 ft	30.48 m	20.32 mm	0.8 in
3M (TC) 3667/34	0.05 in	1.27 mm	Copper Tinned	Zippable	Flat Cable Split Conductor	-20 C	105 ░C	7	36 AWG	Red	28 AWG	UL Style 2651	34	Unshielded	0.89 mm	0.035 in	300 V	Poly-Vinyl Chloride (PVC)					Gray	10 GOhm			100 ft	30.48 m	43.18 mm	1.7 in
3M (TC) 3667/20	0.05 in	1.27 mm	Copper Tinned	Zippable	Flat Cable Split Conductor	-20 C	105 ░C	7	36 AWG	Red	28 AWG	UL Style 2651	20	Unshielded	0.89 mm	0.035 in	300 V	Poly-Vinyl Chloride (PVC)	91.44 m	300 ft			Gray	10 GOhm							1 in	25.4 mm
3M (TC) 3667/20 100	0.05 in	1.27 mm	Copper Tinned	Zippable	Flat Cable Split Conductor	-20 C	105 ░C	7	36 AWG	Red	28 AWG	UL Style 2651	20	Unshielded	0.89 mm	0.035 in	300 V	Poly-Vinyl Chloride (PVC)					Gray	10 GOhm			100 ft	30.48 m			1 in	25.4 mm	30.48 m	100 ft	Enter Number of Feet in Order Quantity

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 79.89
		5	$ 63.74
		10	$ 57.68
		25	$ 50.76
		50	$ 45.85
		100	$ 41.82

Description

General part information

3667 Series

Flat Ribbon Cable Gray 14 Conductors 0.050" (1.27mm) Flat Cable, Split Conductor 100.0' (30.48m)
